For C-arm Equipment

This model is ideal for C-arm systems. Its circular shape allows for more accurate measurements.

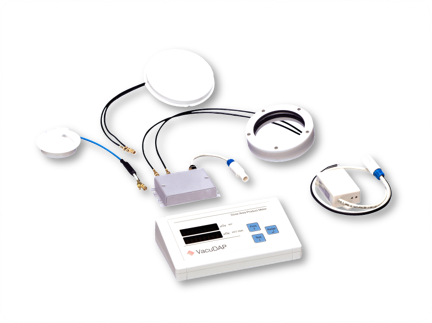

This model includes 1 measuring unit and 1 display unit.

The measuring unit is available in two types: transparent and opaque.

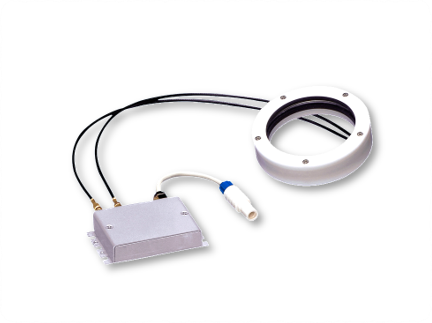

This is a model consisting of the measuring unit only.
Measurement data can be transmitted via RS485 or RS232.

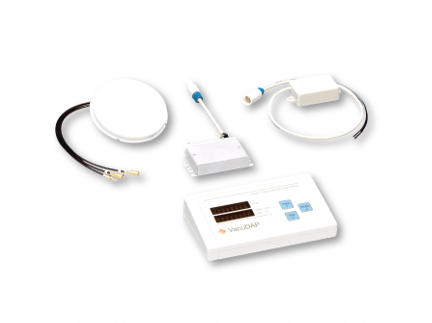

This model can measure area dose rate and air kerma. It includes a display unit, allowing for real-time monitoring of displayings.

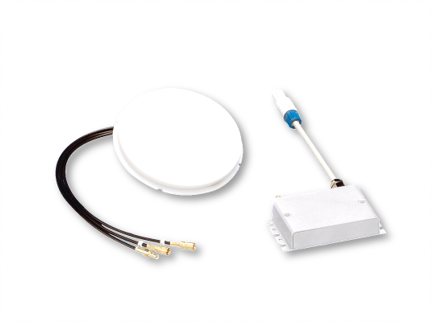

This is a measuring unit-only model. It can measure area dose and air kerma. Measurement data can be sent directly to an X-ray system.

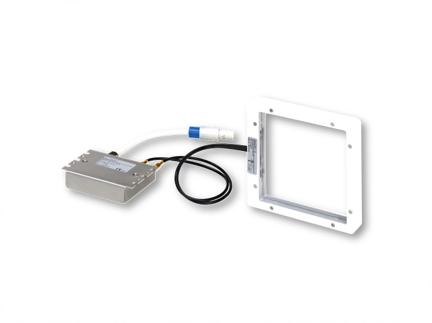

This model features a rectangular, transparent detector. It is designed for use with rectangular collimators.

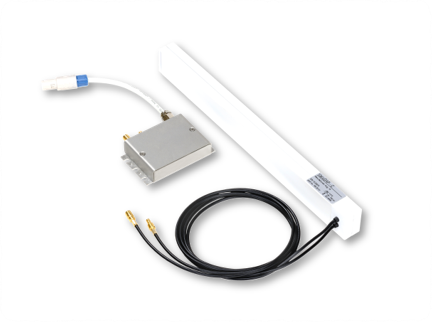

This model is equipped with a rectangular, opaque detector.

Model	VacuDAP – C with display	VacuDAP -C	VacuDAP – C Rectangular	VacuDAP – C Rectangular non-transparent	VacuDAP – C duo with display	VacuDAP – C duo
External connection	External connection is possible via the display. RS232	RS232 / RS485 CAN converter			External connection is possible via the display. RS232	RS232 RS485 CAN converter
Bluetooth Connectivity	A Bluetooth adapter is available as an option for all VacuDAP-C models.
Power	The meter is powered via the display unit. 110–240 V AC	10–30 V DC			The meter is powered via the display unit. 110–240 V AC	10–30 V DC
Active Area	Diameter/Effective Area (mm): Opaque: 60/44, 100/72; Transparent: 90/68, 157/100		86 × 86 mm, 123 × 123 mm, 147 × 147 mm	Length 290 mm	Diameter/Effective Area (mm): Opaque 100/72
Measurement data	Area dose, area dose rate, exposure time				Area dose, area dose rate, dose, dose rate, exposure time
Product Number	159 00 xx 922 00 xx 943 00 04 943 00 40 950 00 57(8, 9)	159 00 xx 922 00 xx	160 00 xx 922 00 xx		161 00 xx 922 00 xx 943 00 04 943 00 40 950 00 57(8, 9)	161 00 xx 922 00 xx

*Chamber power supply options:Power can be supplied via AC, DC, battery, or the collimator.
