Cassette/FPD Holder
Using Podoblock’s cassette/FPD holder protects both the cassette and the FPD, and the holding stick makes positioning easier.

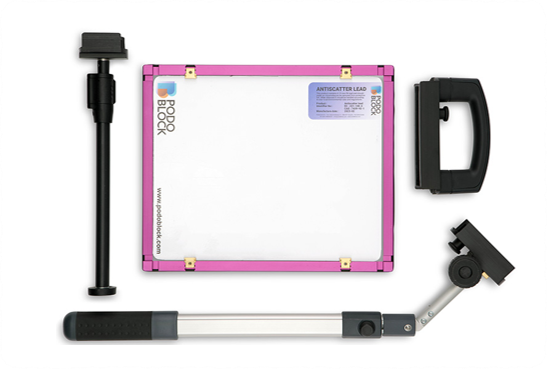

■ DR-Quadro
The DR-Quadro is a lightweight FPD protective frame equipped with a handle. Its aluminum frame and surrounding rubber straps provide reliable protection for the FPD against impacts such as drops.
The rubber straps also ensure a soft finish along the edges.
It features a smart lock mechanism, allowing for the attachment of additional accessories such as protective screens, grids, and backscatter removal sheets.
Optional accessories include a handle, an extendable grip, and support feet.
When used in combination with Podoblock, it protects the cassette and ensures that images are always taken from a stable position. Since the cassette is secured in a vertical position, the radiographer does not need to hold it, thereby preventing exposure to X-rays.
- Optional handle, telescoping grip, support foot, protective screen, carbon protective screen, backscatter removal sheet, grid
- You can choose the color of the frame and handle.
- Available sizes: 6×4, 4×6, 18×24 cm, 24×30 cm

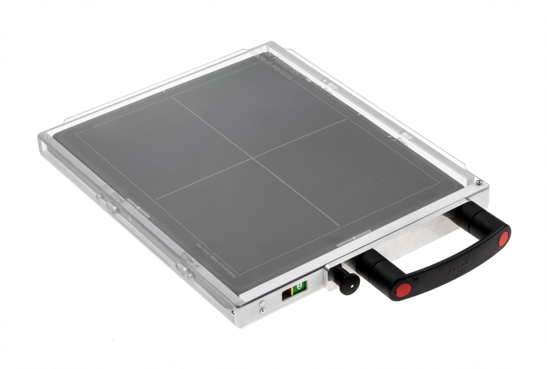

■ DR-Podo-Protection box
It comes with a 5mm adapter for mounting on the Podoblock, allowing you to take photos from the same direction and angle every time during hoof examinations when used with the Podoblock. Alternatively, it includes the removable Greppstr 2.1 handle.
* Some models do not include a 5mm mounting adapter. (DR-Protection box)

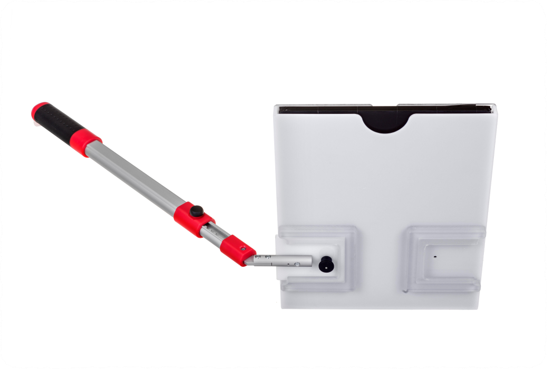

■ Knee Holder
Equipped with a retractable support stick, it allows for quick positioning during knee imaging.
You can instantly switch between left and right positions.
- For analog cassettes and CR cassettes
- Made of lightweight, highly durable polycarbonate
- Available sizes: 6×4, 4×6, 18×24 cm, 24×30 cm
| Size | Cassette Size (mm) | Model Number |
| 18×24 cm | 208×267 | KH 04182418 |
| 24×30 cm | 267×327 | KH 04243018 |
| 8×10″ | 230×280 | KH 04232818 |
| 10×12″ | 280×330 | KH 04283318 |

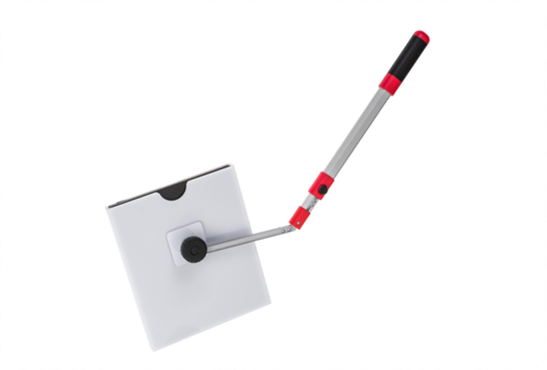

■ Distance Cassette Holder
Equipped with a telescoping holding stick, it allows the photographer to position the cassette steadily even when standing away from the horse.
- Made of lightweight, highly durable polycarbonate
- Available sizes: 6×4, 4×6, 18×24 cm, 24×30 cm, half-size

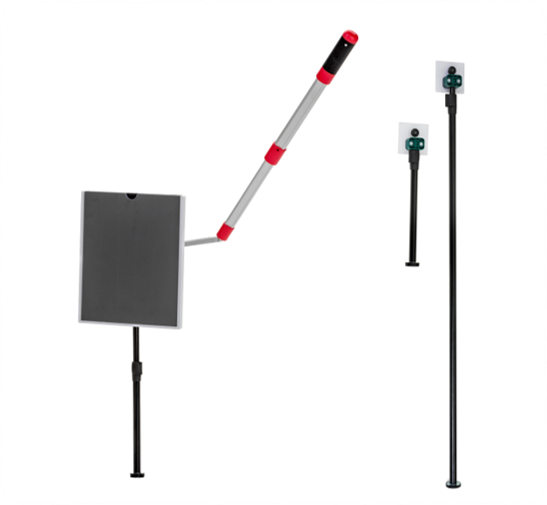

■ Foot option
You can attach retractable legs to stabilize the positioning.
You can choose from two lengths: one for the knees and one for the neck.
- Weight: 1.9 kg
- Short: 28–49 cm (for the knees)
- Long: 100–190 cm (for the back and neck)

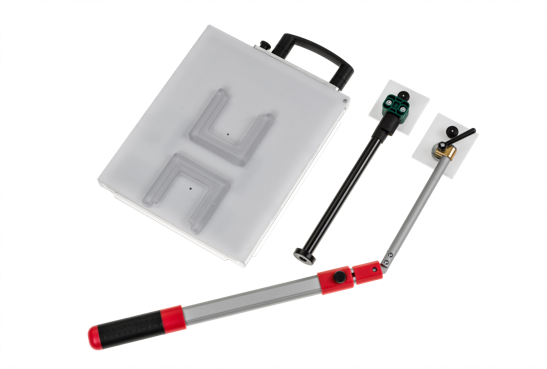

■ DR-Cowboybox
This is a combination model of the DR-Protection box and the Distance Cassette Holder. It can be secured even at an angle.
Depending on the FPD, the housing is equipped with a grip handle or a removable Greppstr 2.1.
- Includes a 30 cm support foot
- Includes a long stick for holding

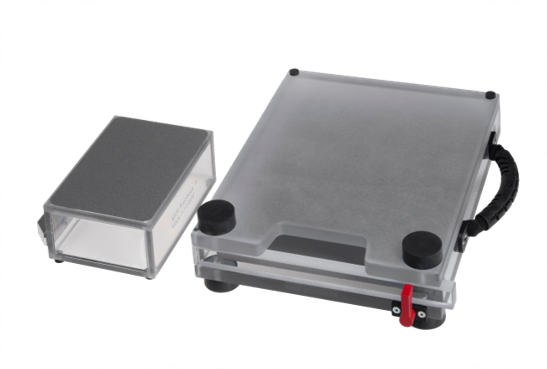

■ DR-Combibox SET
This shooting stand features a 5° tilt, making it ideal for photographing the Skyline.
By flipping it over, you can also shoot on a flat surface.
When used with the DR-Podo-Protectionbox, it allows for hands-free shooting.
This set includes dummies to ensure all legs are at the same height.
* Each item can also be purchased separately.

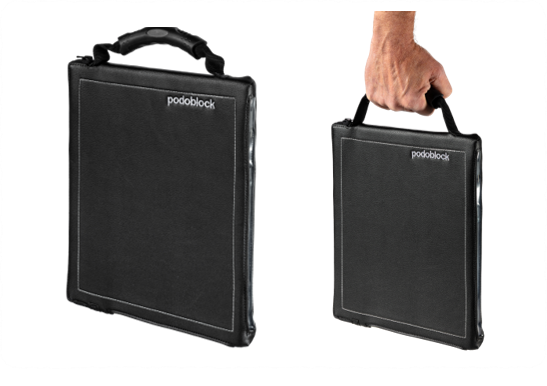

■ DR-Pouch
This FPD and cassette cover is made of synthetic leather and cushioning material for a soft, comfortable feel.
It features a rubber grip handle for easy portability.
The sides are transparent, allowing you to check the FPD’s side LEDs and other components without removing the cover.
- For analog cassettes, CR cassettes, and FPDs
- Available sizes: 4×5, 2×3, 17×17″
