Other Accessories

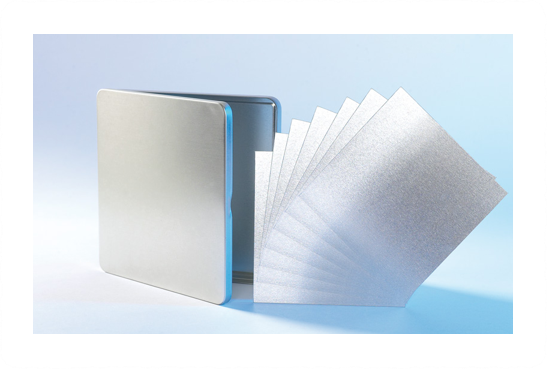

This set is used for half-value layer measurements in accordance with IEC standards. Half-value
layer measurement is an effective alternative to complex and time-consuming X-ray spectroscopy.

• Size: 100 x 100 mm
• Contains 8 aluminum sheets
• Purity: 99.5%

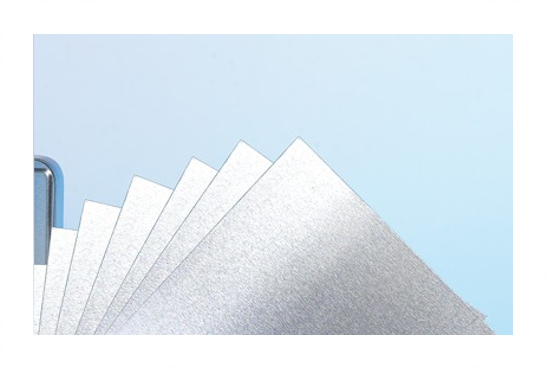

These are extremely high-purity aluminum sheets. They are ideal for measurements requiring very high precision, such as mammography.

• Size: 100 x 100 mm
• Contains 7 aluminum sheets
• Purity: 99.9%

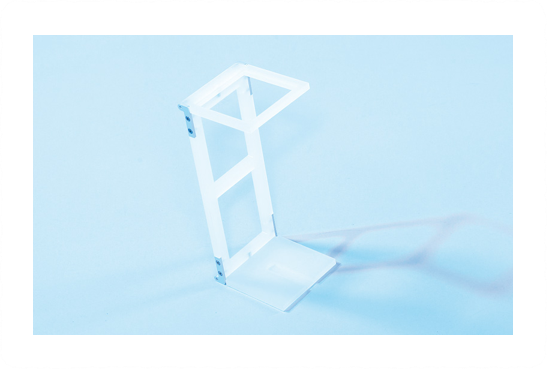

This stand allows for the precise mounting of half-value-layer filters in accordance with IEC standards. It folds flat for compact portability.

• Height: 210 mm

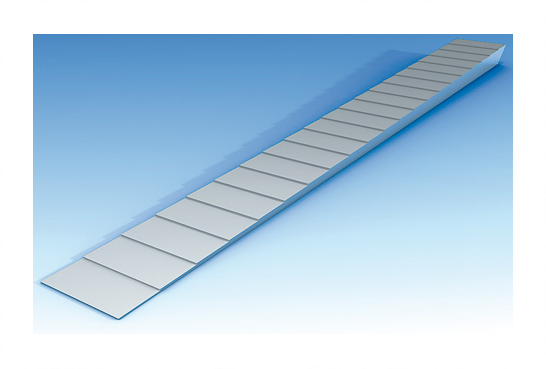

Used for sensitivity measurements in film-screen mammography systems. The 21-step aluminum wedge is used to investigate the dose reproducibility and sensitometry characteristics of film-screen mammography systems.

• Size: 105 x 10 x 6.3 mm
• 1 step: 0.3 mm

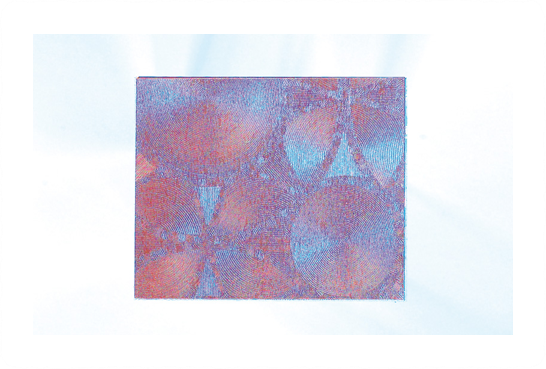

This is a combination filter consisting of 0.06 mm thick copper with an additional 0.5 mm thick aluminum layer. It is used for imaging that requires high image quality at low radiation doses and is particularly effective for pediatric imaging.
This filter is also used as a protective measure to reduce radiation exposure for pediatric patients during X-ray examinations.

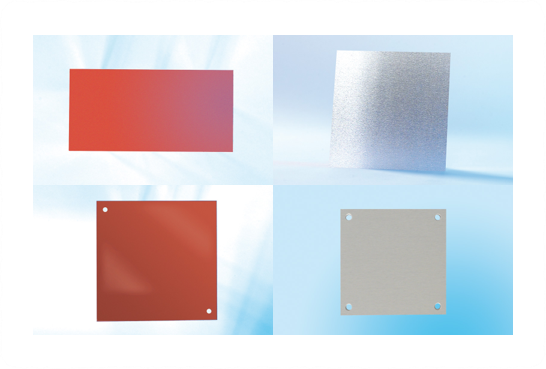

QUART offers added filters compliant with IEC standards.
Materials such as copper and aluminum can be selected to suit the modality.

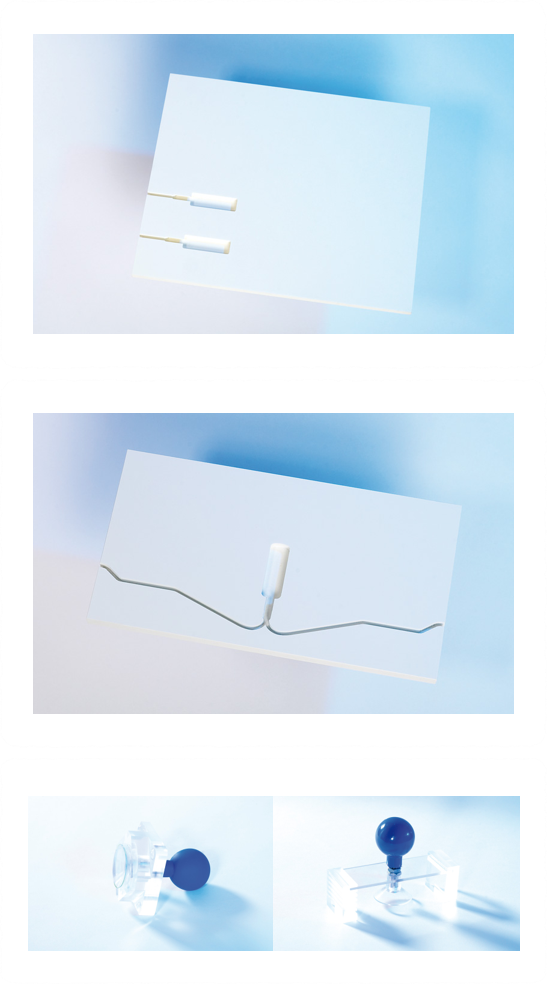

These are mounting fixtures for QUART dosimeters used to perform accurate dose measurements. They allow for easy and repeatable positioning of the sensor on the X-ray image receptor during dose measurement, enabling highly precise management.

Hand holders are also available to attach to filters or sensors, making them easier to hold.
