Various Measuring Instruments
Quart’s X-ray field measurement devices and high-precision voltmeters and ammeters are designed to allow for simple operation without requiring any effort on the part of the operator.
They can be used without the need for cumbersome or complex preliminary settings, and provide highly accurate measurement results.
X-ray Field & Fan Beam Measuring Device

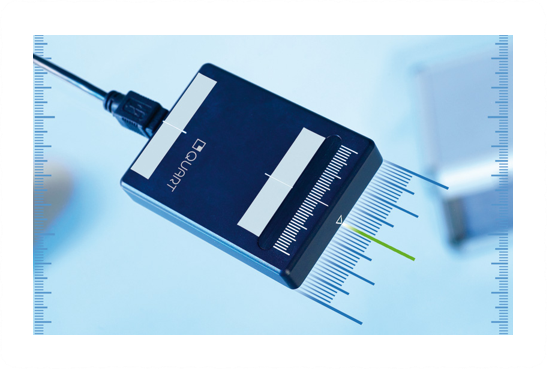

■ QUART nonius
This is a measuring instrument designed to easily verify X-ray fields and the geometric characteristics of X-rays.
The nonius is highly adaptable, compatible with both analog and digital systems, and can be used to analyze the fan-beam characteristics of X-rays in CT and dental equipment.
As its name suggests, it features exceptional precision, capable of measuring down to 0.1 mm.
Due to this accuracy, recent studies have demonstrated that it can also be used for measuring X-ray fields in radiation therapy.

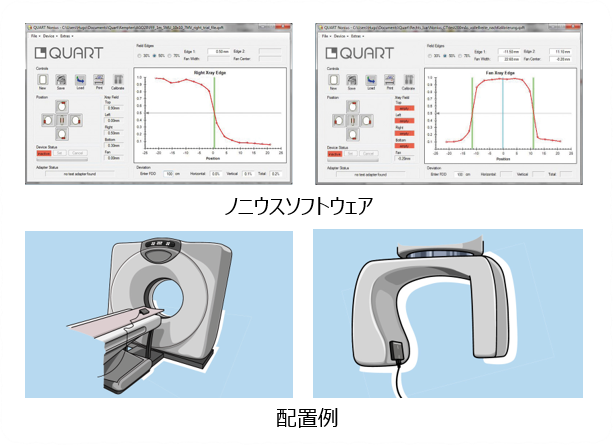

The included software clearly visualizes measurement results and is compatible with nearly all PCs running Windows OS. Furthermore, it supports serial imaging, enabling measurements such as displacement in tomosynthesis and CT scans.
[Instructions] Operating the Quart Nonius is very simple.
1. Connect the Nonius to a laptop or tablet (Windows OS) via USB.
2. Place the head unit at the measurement location.
3. Use the irradiation field or a reference point to adjust the position.
4. Irradiate.
5. The measurement results will be displayed immediately.
- Includes Nonius software, a USB cable, and a compact carrying case
- We offer an optional bridge holder that makes it easy to secure the sensor
| Accuracy/Resolution | ±0.1 mm |
| Irradiation Threshold | Dose ≥ 200 μGy Dose rate ≥ 20 μGy/s |
| Minimum irradiation dose | Varies (depending on the measuring device) |
| Measurement method | Open measurement (no additional filter required) |
| Connection | USB 2.0 (Plug and Play) |
| Temperature | Operating Temperature: 15–40 °C Storage Temperature: 0–50 °C |
| System Requirements Operating Environment |
Pentium III, 128 MB RAM, 1 USB port ; Windows 10, 7, Vista, XP |
| Sensor Area | 40 mm (16 sensor elements) X-ray opaque center marker (visualized during test irradiation) Components optimized for the irradiation field and laser marker |
| Weight | 190 g (excluding USB cable) |
| Head Unit Dimensions | 55 × 75 × 15 mm (W × L × H) |
High-Precision Current / Voltage Meter

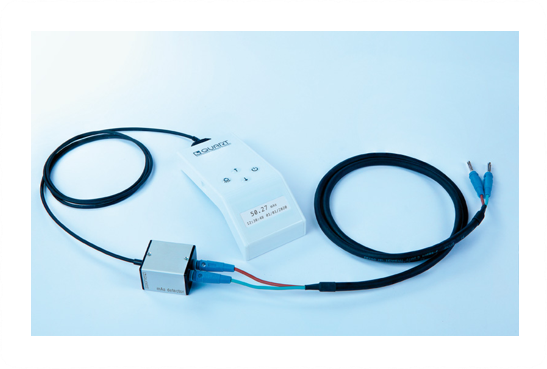

■ QUART didoMAS
Measurements can be taken on virtually all X-ray systems, from general radiography to mammography.
The measurement range is set automatically, requiring no prior configuration.
The kit includes a custom cable for connecting the sensor head to the circuitry.
- Display of measurements updated every second
- Equipped with a rechargeable battery, it can be used continuously for approximately 80 hours
- Fully charged in 3–4 hours
- Low battery warning tone
| mAs | Range error |
0.001 to 9999 mAs ±0.01 mAs or 1% |
| Current | Range Measurement Mode Error |
0.1 to 999 mA Real-time/Max/Average ±0 .1 mA or 0.5% |
| Irradiation Time | Range Mode error |
1.0 ms to 300 s continuous current ±1.0 ms (square wave) |
| Weight | Base Unit Sensor |
180 g, 120 g (including cable) |
| Dimensions | Base Unit Sensor |
170 × 70 × 45 mm (L × W × H) 47 × 30 × 40 mm (L × W × H) |
