AEC
The AEC (Automatic Exposure Controller) is an ion-chamber-type dosimeter that uses an ion timer system to maintain a consistent image density regardless of the subject’s thickness. Since it can stop irradiation at any desired X-ray dose, it helps reduce unnecessary X-ray exposure and contributes to lowering radiation exposure.

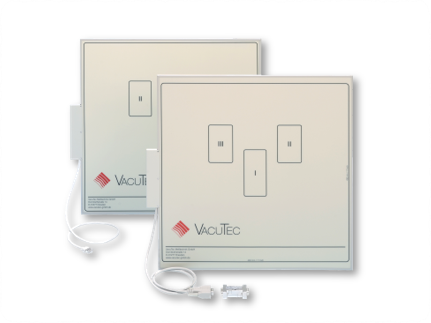

■ AEC Chamber
VacuTec’s AEC features a proprietary mechanism that enables digital output. It provides signal output with higher precision than analog systems.
■ Main Specifications
| Energy Range / Tube Voltage | 40–150 kV |
| Dose Range | 0.5–1000 μGy/s |
| Irradiation Dose Range | 1–100 μGy |
| Digital resolution (selectable) | 0.025 μGy |
| Exposure time range | 1 ms–10 s |
| Sensitivity difference between sensor fields | <5% |
| Attenuation rate 1) | <1.04 |
| Aluminum equivalent | < 0.75 mm Al |
| Power supply | ±12–16 V DC |
| Digital output | RS422, pulse width 2 μs |
| Lamp output(using a lamp module) | 0–10 V |
| Part No. | Number of sensors | Connection | Size (mm) |
| 140 00 13 | 3 | Sub-D 9-pin | 374 x 354 |
| 141 00 18 | 3 | Sub-D 9-pin | 374 x 374 |
| 141 00 20 | 3 | Sub-D 9-pin | 320 x 320 |
| 142 00 13 | 1 | Sub-D 9-pin | 374 x 374 |
| 143 00 06 | 3 | Sub-D 9-pin | 374 x 450 |
| 145 00 44 | 3 | Sub-D 9-pin | 450 x 450 |
| 145 00 45 | 3 | RJ45 | 450 x 450 |
| 151 00 18 | 3 | Sub-D 9-pin | 450 x 450 |
| 151 00 21 | 3 | Sub-D 9-pin | 450 x 470 |
| 151 00 22 | 3 | RJ45 | 450 x 470 |
