For Air Kerma Measurement
The VacuDAP duo allows you to measure both area dose and air kerma simultaneously. It measures the reference air kerma defined in IEC 60601-2-54, which does not account for scattered radiation from the patient. Since the air kerma sensor is built into the device, it maintains a compact design without increasing the overall size.

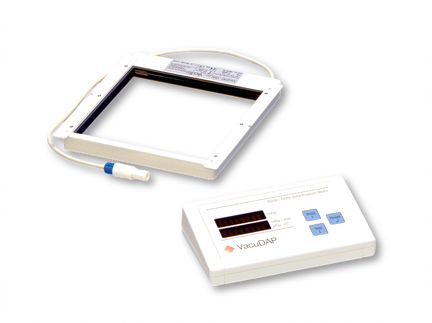

■ VacuDAP duo
This model consists of 1 measuring unit and 1 display unit. During irradiation, the cumulative dose and dose rate are displayed; after irradiation, the cumulative area dose is displayed.

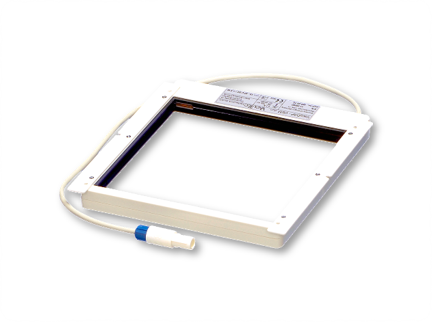

■ VacuDAP OEM duo
This is a model consisting of the measuring unit only.
Measurement data can be sent directly to the X-ray system.
| Model | VacuDAP duo |
VacuDAP Bluetooth duo |
VacuDAP OEM duo |
VacuDAP Bluetooth OEM duo |
| External Connection | External connection is possible via the display. RS485 |
RS485 / RS485 to RS232 CAN converter |
Bluetooth | |
| Power | The measuring instrument is powered via the display unit. 110–240 V AC |
*Chamber Power The display |
10–30 V DC | *Chamber Power Option |
| Measurement Data | Area dose, area dose rate, dose, dose rate, exposure time | |||
| Product Number |
458(6) 00 15 943 00 03 943 00 40 950 00 57(8, 9) |
458(6) 00 14 *Chamber Power 943 00 07 943 00 40 950 00 57(8, 9) |
458(6) 00 15 | 458(6) 00 14 |
*Chamber Power Options: Power can be supplied via AC, DC, battery, or the collimator.
