For New X-ray Equipment
VacuDAP can transmit measurement data to an X-ray system even when used as a standalone device.
By using the ASCII protocol, you can configure the device settings from any computer.
Its simple configuration makes it highly cost-effective.

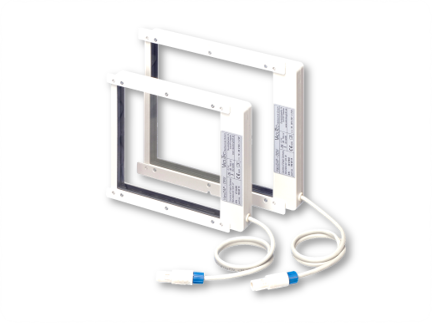

■ VacuDAP OEM
This is a meter-only configuration. Serial communication is available via RS232 or RS485.

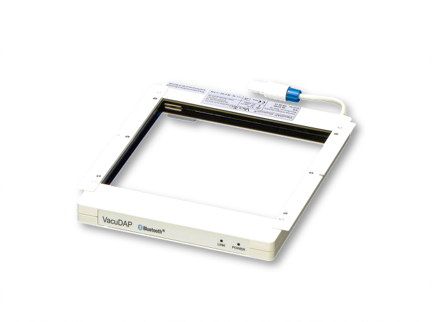

■ VacuDAP Bluetooth OEM
This model supports Bluetooth connectivity. It can be used without issues such as cable damage.

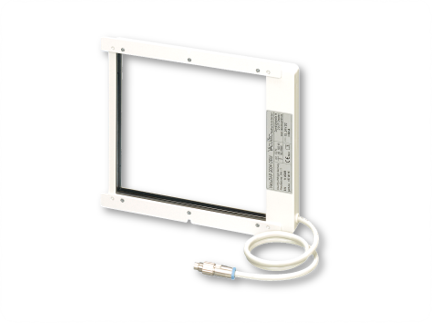

■ VacuDAP 2004 OEM
This model supports RS422 serial communication. It is ideal for connecting to a generator.

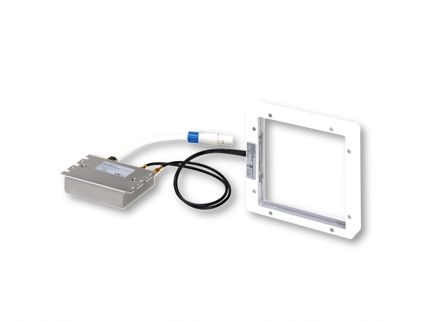

■ VacuDAP – C Rectangular
This model features the smallest chamber, providing an effective area of 86 x 86 cm. Although developed for C-arm systems, its size also makes it suitable for compact collimators such as portable X-ray units.
| Model | VacuDAP standard |
VacuDAP Bluetooth OEM |
VacuDAP 2004 OEM |
VacuDAP – C Rectangular |
| Control | Controlled by the host computer. | |||
| External connection | RS485 RS485 to RS232 CAN converter |
Bluetooth | RS422 | RS232 / RS485 CAN converter |
| Power Supply | 10–30 V DC | *Chamber power supply option | 10–24 V DC | 10–30 V DC |
| Measurement Data | Area dose, area dose rate, exposure time | Area dose, area dose rate | Area dose, area dose rate, exposure time | |
| Product Number | 158(6) 00 15 | 158(6) 00 14 |
157 00 15/95 (156 00 10/95) |
160 00 xx 922 00 xx |
*Chamber power supply options: Power can be supplied via AC, DC, battery, or the collimator.
