Shields for CT and Surgery/Others
We offer a range of protective products suitable for various X-ray imaging applications.

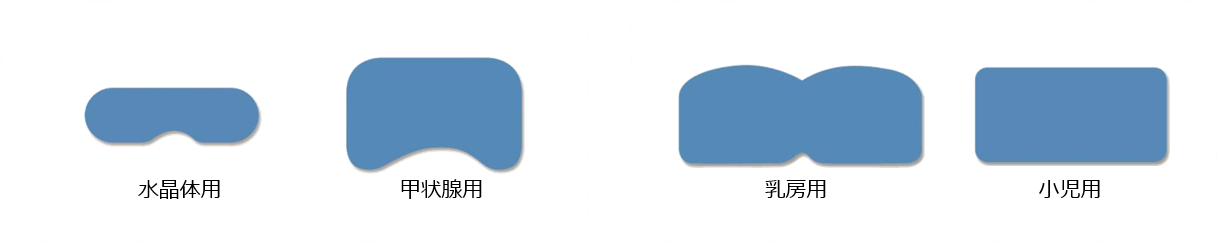

■ CT Shield
These shields provide targeted protection against X-ray exposure to sensitive areas such as the thyroid, breasts, and lens during CT scans. Pediatric sizes are available depending on the child’s age.
・Lens Shield:
Blocks over 60% of X-rays from the CT scan to the eyes(lens).
・Thyroid Shield:
Blocks over 65% of X-rays to the thyroid, preventing tissue damage.
・Breast Shield:
Blocks over 67% of X-rays to the breast, reducing the risk of cancer associated with CT scans.
・Pediatric Shield:
Designed for children, who are more sensitive to X-rays than adults. Four sizes are available to suit different ages.
| Type | Size | Height × Width (mm) | Quantity per Box |
| Lens | Free | 40 × 150 | 20 sheets |
| Thyroid | Free | 90×150 | 10 sheets |
| Breast | M | 200×430 | 1 sheet |
| L | 200×530 | 1 sheet | |
| Children | Infant | 50×140 | 10 sheets |
| 1 year old | 60×240 | 8 sheets | |
| 5 years old | 80×280 | 6 pieces | |
| 10 years old | 100×330 | 4 sheets |

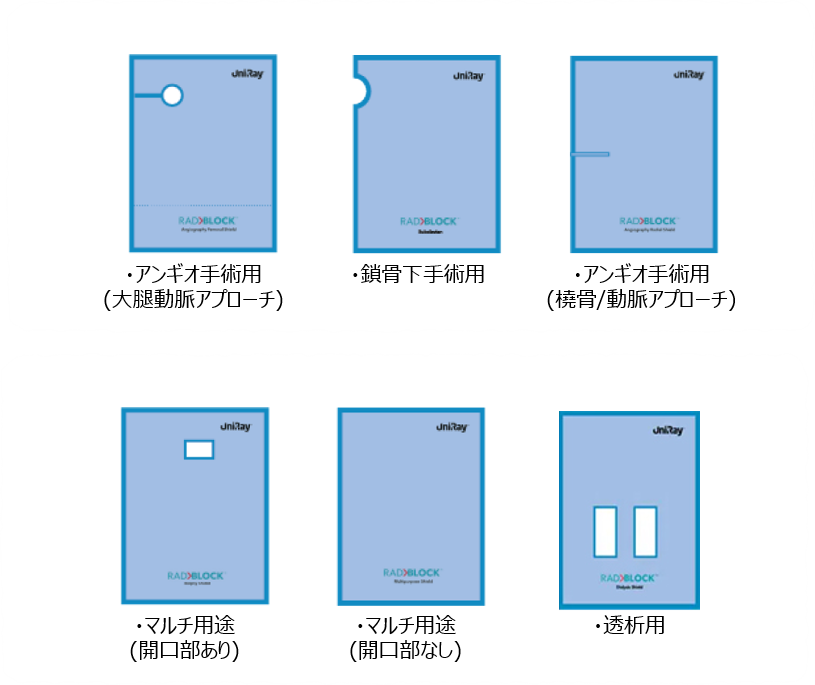

■ RadBlock
RadBlock protects the surgeon from scattered radiation during surgery using fluoroscopy equipment.
The sheet is pre-cut to fit the procedure, so it can be placed over the patient and used without interfering with the procedure.
| Size (inches) |
X-ray Attenuation Rate | Quantity per Box |
| 13×16″ | HIGH (0.35mm Pb) |
10 sheets |
| MEDIUM (0.25 mm Pb) |
10 sheets | |
| LOW (0.125 mm Pb) |
10 sheets |

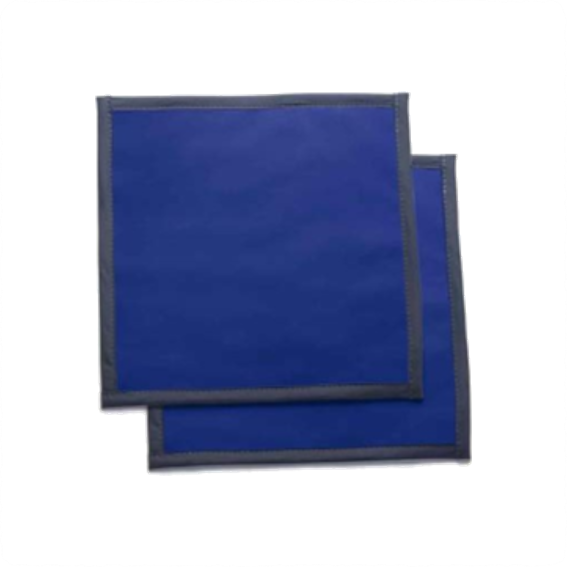

■ Patient Shield
This is protective shields for patients. Simply drape them over the patient to easily protect the necessary areas.
We offer three sizes, so please choose the one that best suits your needs.
| Lead Equivalent | Size | Width × Length (cm) | Weight (kg) KRYPTOLiTE |
Weight (kg) MaxLite |
Weight (kg) LITELEAD |
| 0.25 | S | 30×30 | 0.2 | 0.2 | 0.3 |
| M | 40×40 | 0.4 | 0.5 | 0.6 | |
| L | 50×50 | 0.7 | 0.8 | 0.9 | |
| 0.35 | S | 30×30 | 0.4 | 0.4 | 0.5 |
| M | 40×40 | 0.7 | 0.7 | 0.9 | |
| L | 50×50 | 1.1 | 1.2 | 1.4 | |
| 0.50 | S | 30×30 | 0.5 | 0.5 | 0.6 |
| M | 40×40 | 0.8 | 0.9 | 1.1 | |
| L | 50×50 | 1.3 | 1.5 | 1.8 | |
| 1.00 | S | 30×30 | 0.9 | 1.0 | 1.2 |
| M | 40×40 | 1.7 | 1.9 | 2.2 | |
| L | 50×50 | 2.6 | 2.9 | 3.5 |

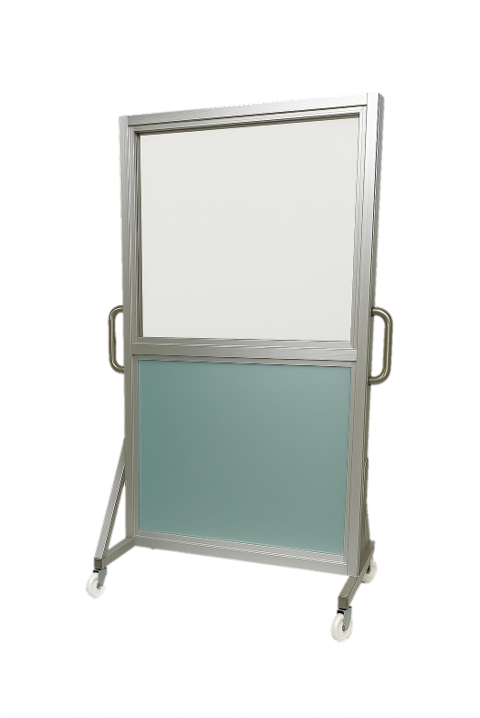

■ Protective Screen: Rad Barrier-X
- Fully Customizable Design:
Adjust the glass area and partition size to suit your application, adapting to any environment and providing optimal protection. - Clean and Hygienic:
Features aluminum sashes designed for cleanrooms that resist dust accumulation. - Easy to Maintain:
Cover glass is laminated to both sides of the leaded glass to ensure high durability. Resistant to dirt and easy to maintain. - Smooth Mobility:
Equipped with handles for easy movement. Allows for flexible operation depending on the location. - Optional accessories such as dedicated shelves can also be installed.
