Goggles/Thyroid Shield/Gloves/Others

We offer accessories designed to provide full-body protection. These ensure reliable protection not only for the torso but also for X-ray-sensitive areas such as the lens of the eye, the thyroid gland, and the reproductive glands.
Additionally, we recommend lightweight radiation-protective gloves to shield your hands—which are particularly prone to exposure—during procedures.

■ Protective Goggles

These goggles protect the eyes (lens), which are highly sensitive to X-rays.
Featuring a lightweight frame and 0.75 mm Pb lead glass, they block 99% of scattered radiation.

● UniRay Goggles

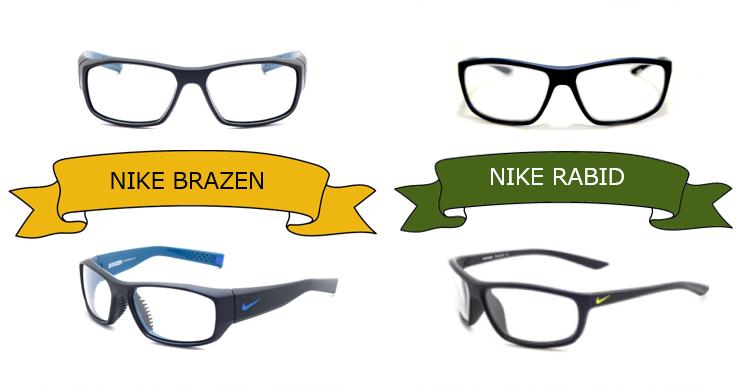

NIKE Series

• NIKE BRAZEN
  A sporty design with rubber nose pads. Protects the front of the eyes.
• NIKE RABID
  Slim, easy to wear, and stylish. Protects the front of the eyes.

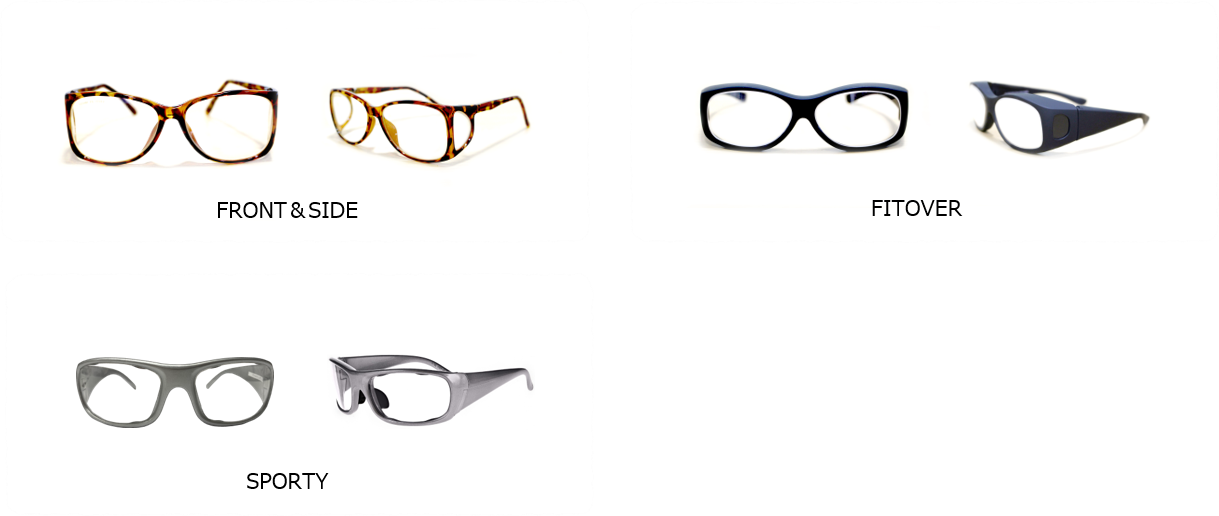

• Front & Side:
  Protects the lens not only from the front but also from the sides.
• Fit Over:
  Designed to be worn over prescription glasses. Fits snugly over glasses to ensure a clear field of vision.
• Sporty:
  The wraparound shape also blocks stray light from the sides.

● X-Guard Series

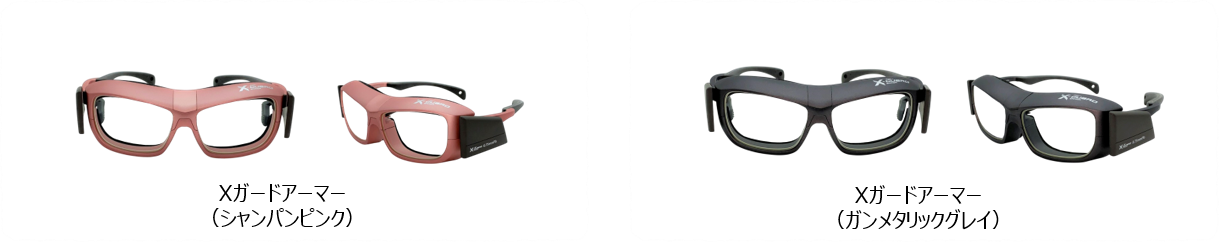

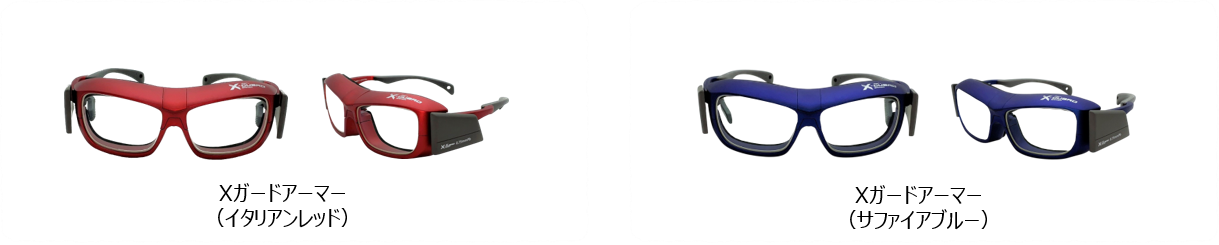

• X-Guard Armor:
  In addition to lead glass at the front, lead plates of 0.75mm Pb or thicker are positioned on all sides, effectively blocking stray light from every direction. The side pads and temples are adjustable to fit the shape of your face, ensuring an optimal fit. Additionally, by attaching an inner frame, these goggles can accommodate prescription lenses; simply swap out the inner frame to continue using the same main frame.

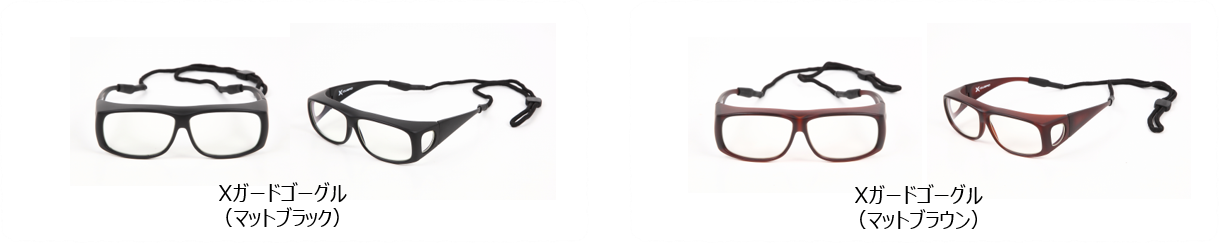

• X-Guard Goggles:
  This model can be worn over regular glasses. The clear side panels ensure a wide field of view.

• The X-Guard View
  Key features are its lightweight design and the use of scratch-resistant acrylic lenses that have passed impact resistance tests. Furthermore, the inner surface of the lenses features an anti-fog coating to ensure clear vision. The front frame is coated with a shielding finish to protect against scattered radiation.

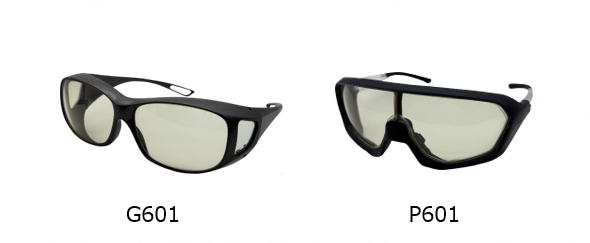

G601: An over-the-glasses style that allows light to enter easily from the sides.
P601: Radiation protection glasses designed by sunglasses designers; by attaching an inner frame, they are compatible with prescription lenses, including bifocals.

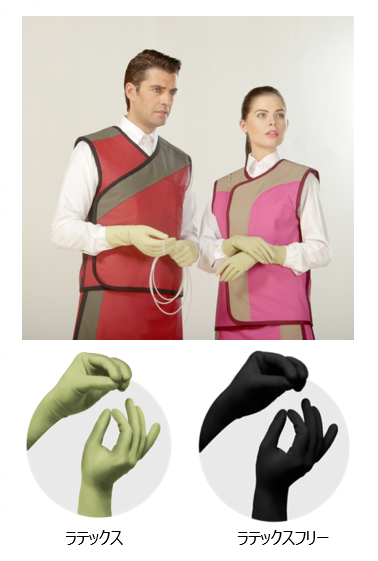

■ Radiation Protection Gloves

Radiation protection gloves are crafted with a focus on fingertip sensitivity and comfort to ensure they do not interfere with procedures. Two thicknesses are available: PRIME 0.35mm (thin) and SHEER 0.25mm (ultra-thin). Both are manufactured to ensure consistent uniformity and protective performance. Made from lead-free materials and 100% sterilized, they have been proven through aging tests to maintain their quality for three years.
Latex-free models are also available, allowing those with rubber allergies to use them with confidence.

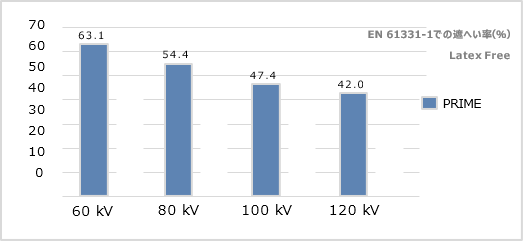

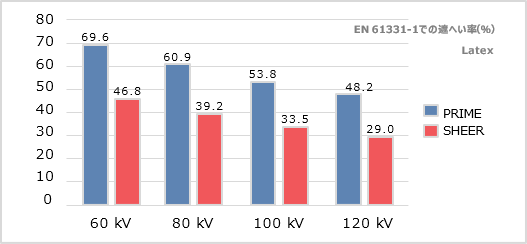

■ Shielding Performance Test Results

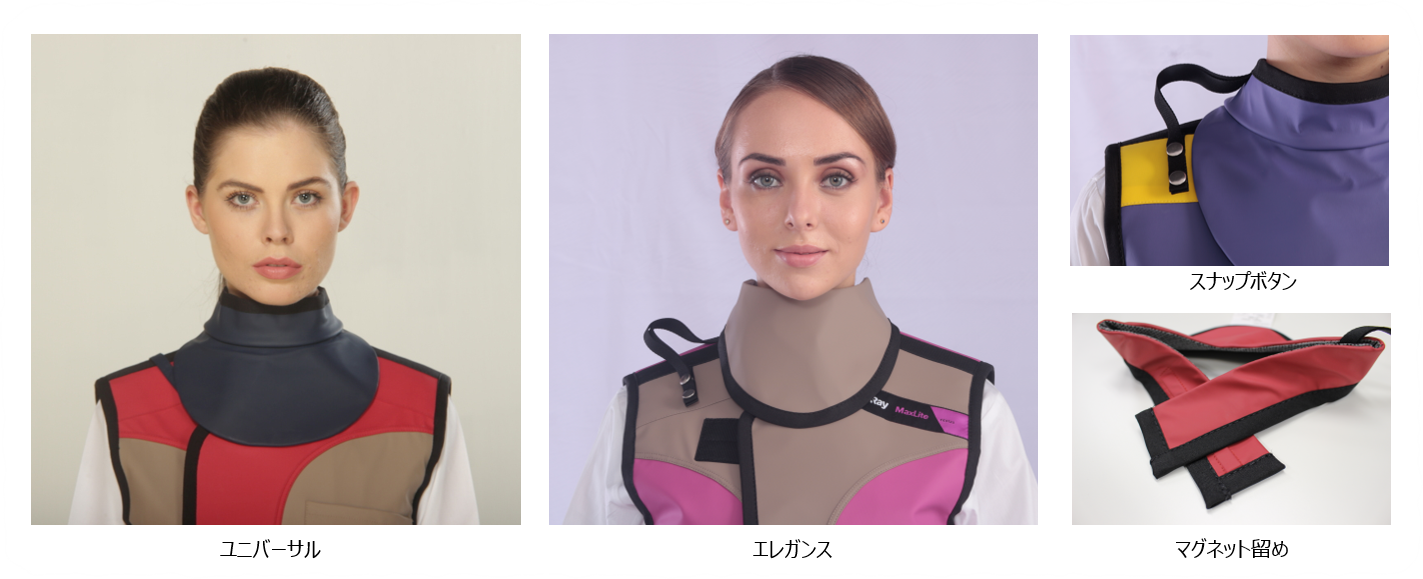

■ Thyroid Shield

Protects the thyroid gland, which is sensitive to X-rays. In addition to the Velcro type, a magnetic type is also available for easy attachment and removal.
All neck guards can be attached to the apron with snap buttons to prevent them from falling off.

• Universal
  This is the most popular type, featuring a collar.
• Elegance
  Fits snugly around the collar, allowing for a secure, gap-free fit. Provides full neck protection while maintaining comfort.

Lead Equivalent	Size	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
0.25	Free	0.24	0.26	0.29
0.35	Free	–	–	0.34

* For specifications marked with “-“, please contact us separately.

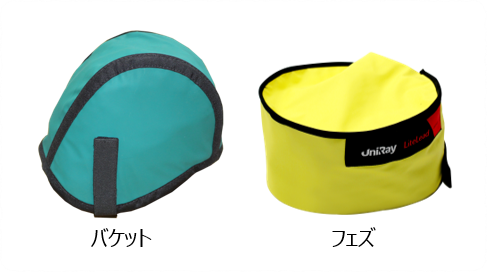

■ Protective Hat

Protects the head from X-ray exposure. Available in two types.

• Bucket:
  Fits the shape of the head and covers the entire head up to the ears. Protects the front, top, and back from scattered radiation.
• Fez:
  This fez-style hat is easy to put on and take off. It protects the front of the head from scattered radiation.

Lead Equivalent	Type	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
0.25	Fez	0.18	0.20	0.22
	Bucket	0.47	–	–

* Please contact us separately regarding specifications marked with “-“.

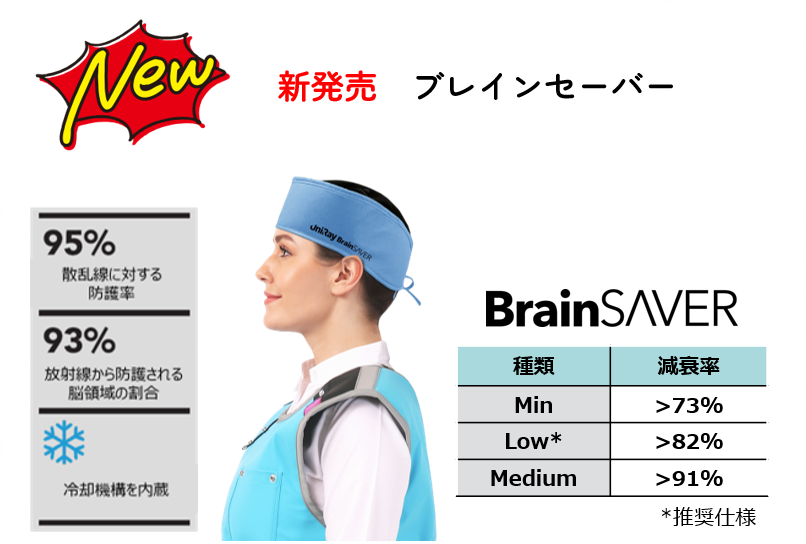

■ Brain Saver

Envelops the entire head for more effective protection. The lining features Outlast fabric with temperature-regulating properties, which helps prevent the head from overheating and ensures a comfortable fit.

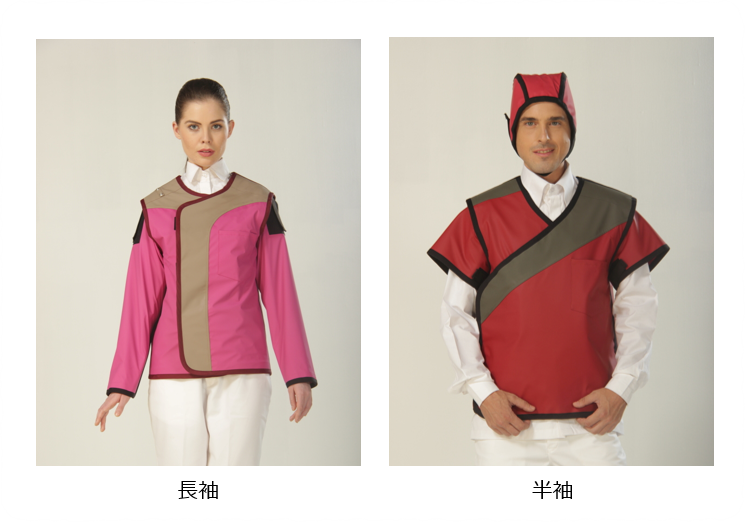

■ Mounting Sleeve

Protects the arms and armpits, which are prone to scattered radiation during surgery.
Available in short-sleeve and long-sleeve styles.

Lead Equivalent	Type	Length (cm)
0.25	Short-sleeve	30
	Long-sleeve	57

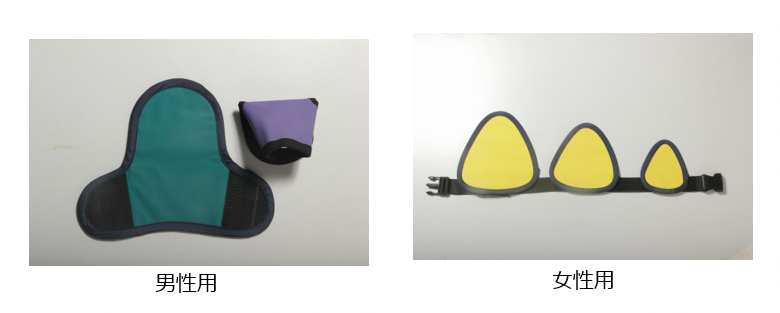

■ Lower Body Protection

Provides targeted protection for the reproductive organs, which are sensitive to X-rays.
Available in adult, child, and infant sizes.

Lead Equivalent	Size	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
1.0	Adult	– / –	– / –	– / –
	Children	– / –	– / –	– / –
	Infant	– / –	– / –	0.43 / 0.22

* The weight on the left is for men, and the weight on the right is for women.
* Please contact us separately regarding specifications marked with “-“.

■ Protective Mittens

These mittens use a shielding sheet, providing high protective performance and reliably shielding against X-rays.
The finger areas are open, allowing for free hand movement.

Lead Equivalent	Size	Width × Length (cm)
0.25	Free	39×15
0.35	Free	39×15
0.50	Free	39×15

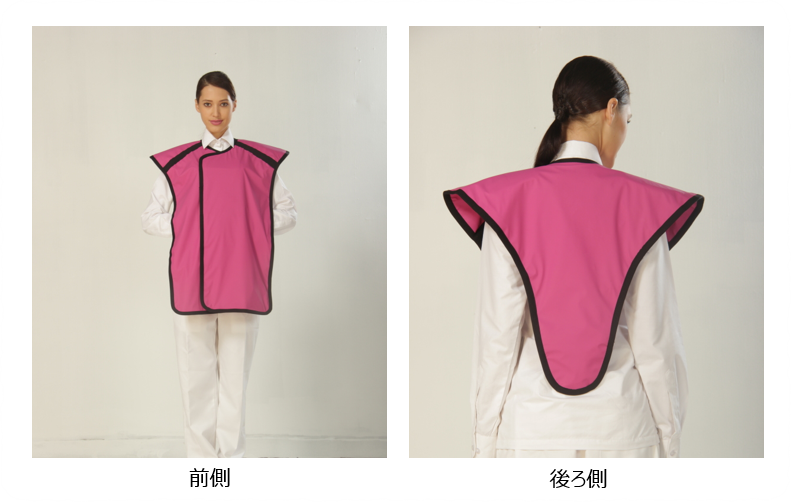

■ Panoramic Apron

This apron is designed for panoramic dental imaging.
Its wide-shoulder design ensures reliable protection from the shoulders down.

Lead Equivalent	Size	Width × Length (cm)	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
0.35	Adult	55×80	–	–	–
	Children	45×60	–	–	2.5

* Please contact us separately regarding specifications marked with “-“.

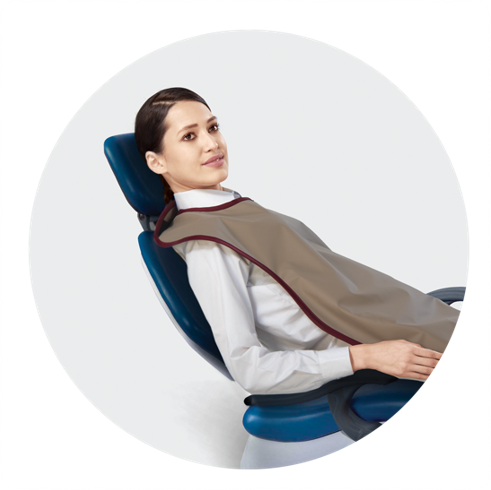

■ Dental Apron

This is a dental apron for X-ray imaging. It can be easily put on while seated in the chair.

Lead Equivalent	Size	Width × Length (cm)	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
0.35	Adult	56×76	–	–	–
	Children	48×58	–	–	–

* Please contact us separately regarding specifications marked with “-“.

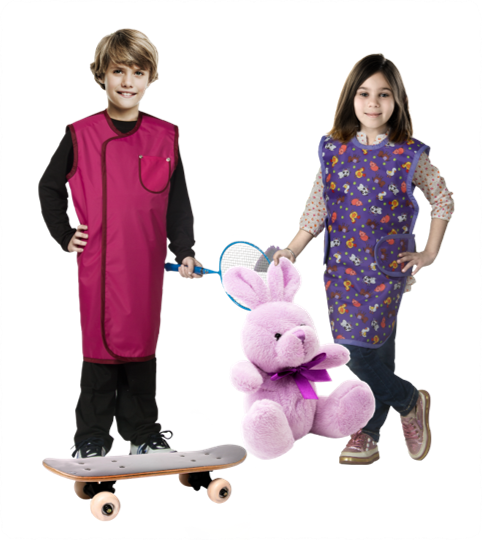

■ Children’s Aprons

You can choose between coat aprons and double-sided aprons for children. We offer three sizes based on age. They can be customized in a variety of colors and designs.

Lead Equivalent	Size	Width × Length (cm)	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
0.50	Age 3–5	40×60	– / –	– / –	– / –
	Age 6–8	45×70	– / –	– / –	– / –
	Age9–12	50×80	– / –	– / –	3.0 / –

* The weight on the left is for the coat apron, and the weight on the right is for the double-sided apron.
* Please contact us separately regarding specifications marked with “-“.

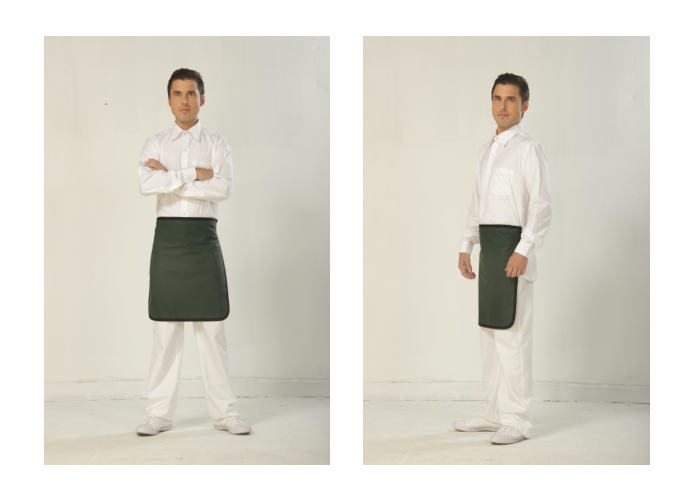

■ Patient Aprons

Ideal for protecting patients’ reproductive organs. You can choose between a buckle-type or Velcro-type belt.

Lead Equivalent	Size	Width × Length (cm)	Weight (kg) KRYPTOLiTE	Weight (kg) MaxLite	Weight (kg) LITELEAD
0.25	S	30×30	–	–	–
	M	40×40	0.6	–	–
	L	50×50	0.9	–	–
0.35	S	30×30	–	–	–
	M	40×40	–	–	–
	L	50×50	–	–	–
0.50	S	30×30	–	–	0.7
	M	40×40	–	–	1.2
	L	50×50	–	–	1.9

 * Please contact us separately regarding specifications marked with “-“.
