positioning block
Podoblock, a Dutch company specializing in the development and sale of accessories for X-ray imaging of racehorses, has obtained CE marking for its products. These products are highly regarded for their quality not only in Europe but also in global markets.
Using Podoblock products improves the efficiency of the labor-intensive process of imaging racehorses and enables the acquisition of optimal images.

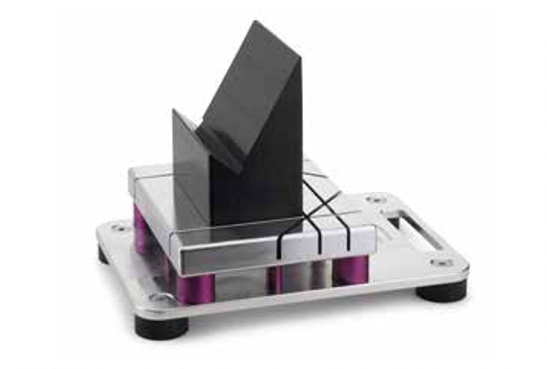

■ Podoblock

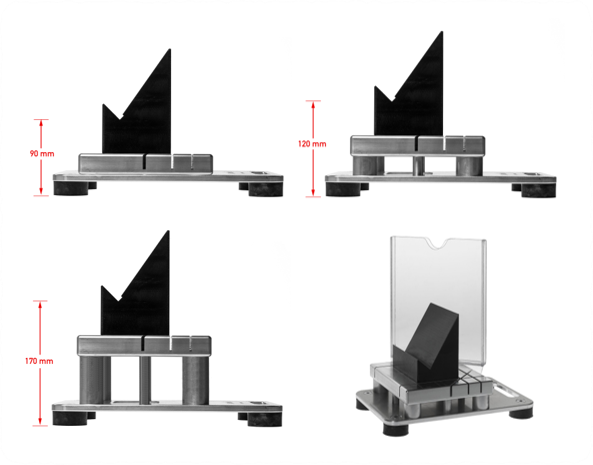

These are positioning blocks that allow you to secure the hoof at a consistent angle. When used in conjunction with the Podo-Protectionbox or Cowboybox, they help maintain the optimal shooting distance, allowing the photographer to shoot from a distance. The height from the ground to the tip of the hoof for Podoblock is available in 90, 120, or 170 mm.
| Product | Model |
| BE 90mm + TB 45° | PB 01AL090-45 |
| BE 90mm + TB 50° | PB 01AL090-50 |
| BE 90mm + TB 55° | PB 01AL090-55 |
| BE 90mm + TB 60° | PB 01AL090-60 |
| BE 90mm + TB 60° UP | PB 01AL090-60 UP |
| BE 120mm + TB 45° | PB 01AL120-45 |
| BE 120mm + TB 50° | PB 01AL120-50 |
| BE 120mm + TB 55° | PB 01AL120-55 |
| BE 120mm + TB 60° | PB 01AL120-60 |
| BE 120mm + TB 60° UP | PB 01AL120-60 UP |
| BE 170mm + TB 45° | PB 01AL170-45 |
| BE 170mm + TB 50° | PB 01AL170-50 |
| BE 170mm + TB 55° | PB 01AL170-55 |
| BE 170mm + TB 60° | PB 01AL170-60 |
| BE 170mm + TB 60° UP | PB 01AL170-60 UP |
*BE = Base Element, TB = Topblock, UP = Upright Pedal

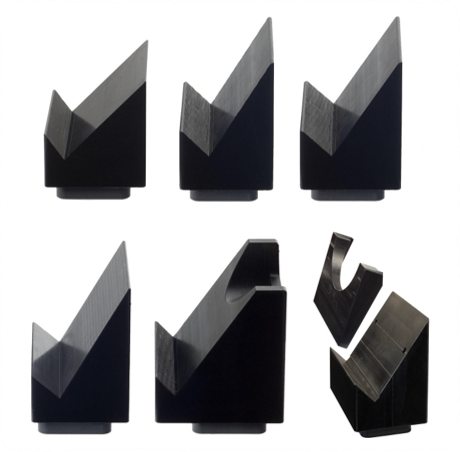

■ Topblock + optional Wedge
We offer a variety of angles from 45° to 60° in 5° increments.
- The block is easy to replace
- Made of polyethylene PE500, available in black only
| Product | Item Number |
| Topblock 45° | TB 0250045 |
| Topblock 50° | TB 0250050 |
| Topblock 55° | TB 0250055 |
| Topblock 60° | TB 0250060 |
| Topblock 60° Upright Pedal | TBD 0250060 |
| Topblock Wedge 10° | TBW 0250010 |

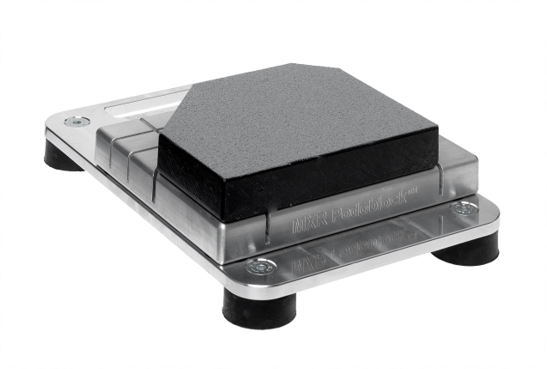

■ Topblock Flatplate
Allows for photography with the hoof in a flat position.
- Made of polyethylene PE500; available in black only
| Product | Item Number |
| Topblock Flatplate AP | TBF 02500AP |
| Topblock Flatplate LM /AP | TBF 02500LMAP |
| Topblock Flatplate LM / AP 45° | TBF 0250045 |

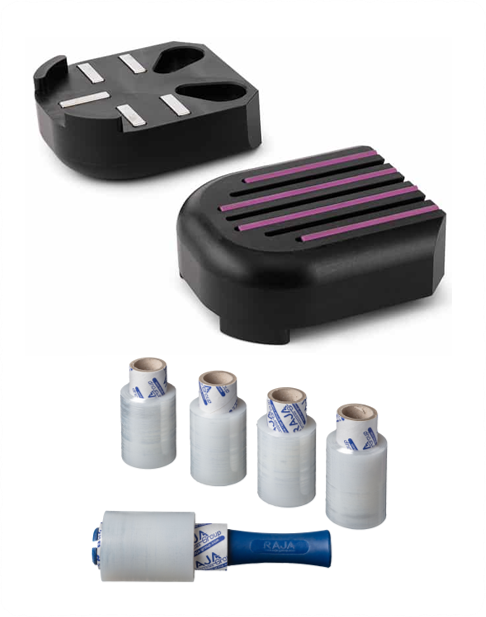

■ MagRayCloxx

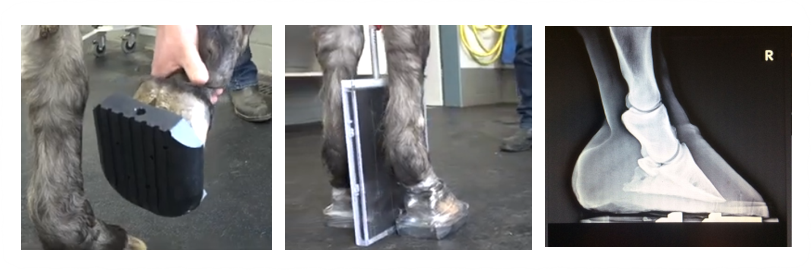

A positioning block equipped with a hoof-shaped magnet. It speeds up the procedure and eliminates the need for sedation. It comes with a wrap for additional support, so it can be used even on horses without shoes.
- Made of synthetic PE500
- Allows for clear imaging of both the front and sides of the hoof
- Magnet secures the block in a horseshoe shape
- Non-slip rubber strips on the bottom
- Includes a radiolucent wrap for additional stabilization.
| Product | Item Number |
| 2 blocks / 1 hand dispenser / 5 foil rolls | MRC 01SET2-5 |
| 4 blocks / 1 hand dispenser / 12 foil rolls | MRC 01SET4-12 |
| 1 Hand dispenser / 12 Foil rolls | MRC 01FOIL1-12 |
