Radiation Dosimeter
Quart’s high-precision dosimeters for diagnostic equipment are designed to maximize user convenience.
Leveraging the manufacturer’s expertise and knowledge cultivated over more than 30 years, these devices minimize the need for complex pre-configuration and allow for the measurement of all evaluation parameters required for quality assurance in a single irradiation, thereby reducing the burden of QA/QC operations.
Furthermore, the design is carefully crafted to be easy to read, compact, and lightweight, making them easy to transport and manage.
Dosimeter for High-Performance Diagnostic Equipment

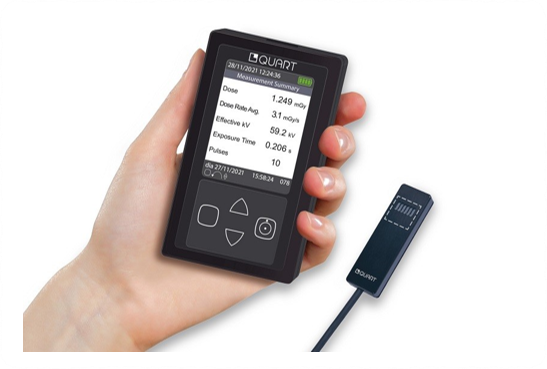

■ QUART didoNEO R
This multi-modality dosimeter can be used for general radiography, fluoroscopy, and dental imaging.
It features the most compact, palm-sized design available and enables highly accurate dose measurements.
It allows for the measurement of key parameters including dose, dose rate, voltage, exposure time, waveform, total filtration, and half-value layer in a single exposure.
- The most compact multi-parameter sensor
- The smallest multi-base unit among similar dosimeters
- Waveforms can be viewed on the base unit (or via a PC connection)
- Can store up to 20,000 irradiation records
- Options available for expanding functionality
- Additional features will be added via future upgrades
| Dose | Range Error Mode Features |
0.25 µGy to 999 mGy ±5% With/Without Additional Filter Automatic correction for panoramic imaging and dental X-ray quality |
| Dose-Width Product, Dose-Length Product (DWP, DLP) |
Range Error Mode Features |
0.25 µGy ~ 999 mGy ±5 % With/Without Additional Filter Automatic Correction of Panoramic and Dental X-ray Quality |
| Dose Rate | Range Error Mode Characteristics |
0.3 µGy/s ~ 999 mGy/s ±5 % Real-time display / Maximum / Average Measurement of dose rate during the first half of irradiation (for dose calculation in panoramic imaging according to DIN 6868-151) |
| Voltage | Range Error Mode |
50 to 150 kV (R) ±5% (for 2 to 8 mm aluminum equivalent) Maximum voltage (kVp)/Weighted average peak voltage (PPV) |
| Time | Range Error Mode |
0.2 ms to 300 s 0.1% or ±0.2 ms > 1 µGy/s, 0.1% or ±250 ms < 1 µGy/s Exposure time / Irradiation time |
| Pulse | Range Error |
1 to 65,000 ±1 pulse |
| Total Filtration (TF) | Range Error Margin |
0.8 to 9 mm Al ±8% 60 to 100 kVp, 0.8 to 8.5 mm aluminum equivalent |
| Half-value layer (HVL) | Range Error Margin |
0.1 to 11 mm Al ±8% 0.1 to 12.5 mm Al |

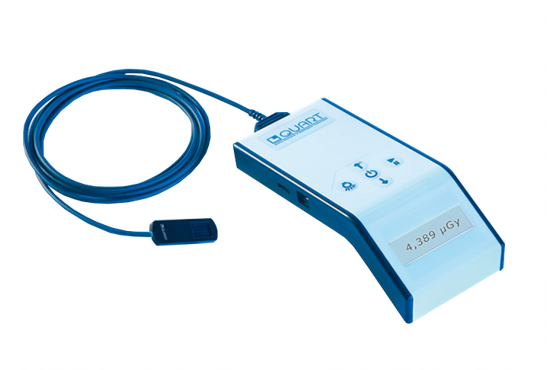

■ QUART didoEASY R (General and fluoroscopy use)
■ QUART didoEASY M (Mammography use)
■ QUART didoEASY MR (General and mammography use)
It can be used with virtually all modalities, including general radiography, mammography, fluoroscopy, DSA, dental radiography, and dental CT.
No prior setup is required, enabling simple and highly accurate dose measurement.
It is ideal for measuring the parameters necessary for the regular servicing and quality assurance of X-ray equipment.
Another key feature is its ability to directly measure the dose-width product (DWP).
- Measures dose, Dose rate, and Exposure time
- Directly measures DWP (dose-wide product) during panoramic dental imaging
- Compact, lightweight semiconductor sensor
- Simple yet highly accurate dosimeter
- Easy operation with no preset settings(Positioning → Irradiation → Display of measurement values)
- Automatic correction for all radiation types
- No additional adjustments or correction settings required
- Equipped with a rechargeable battery, enabling approximately 80 hours of continuous use
| Operating Voltage | Range | 40 to 160 kV (didoEASY R) 25 to 40 kV (didoEASY M) 25 to 160 kV (didoEASY MR) |
| Features | Automatic correction for all X-ray qualities and added filters · General radiography and fluoroscopy · Mammography (didoEASY M and MR only) · Dental No presetting or additional correction required |
|
| Customization | Customizable beam quality correction | |
| Dose | Range Resolution Error |
0.2 μGy to 999 Gy 0.01 μGy <5% |
| Dose-Width Product (DWP) | Range Resolution Error |
0.2 μGy*cm to 999 Gy*cm (at 50 to 150 kV) 0.01 μGy*cm <5 % |
| Dose Rate | Range Resolution Error Measurement mode |
0.25 μGy/s to 999 mGy/s 0.01 μGy/s <5% Real-time display / Maximum / Average |
| Time | Range Resolution Error Measurement mode |
0.5 ms to 300 s 0.1 ms <0.5 % (± 0.5 ms) Irradiation time |
Measurement Items by Model
• dido EASY++: Dose, dose-area product, dose rate, voltage, exposure time, half-value layer
• dido EASY+: Dose, dose-area product, dose rate, voltage, exposure time
• dido EASY: Dose, dose-area product, dose rate, exposure time
Other

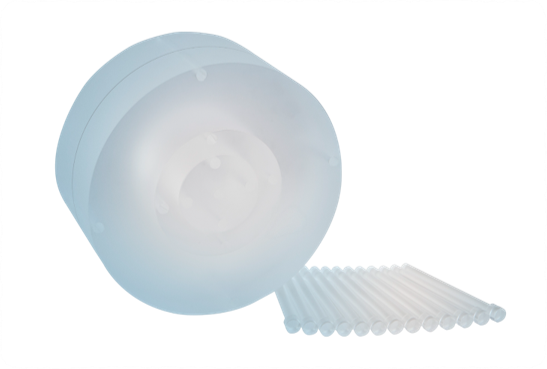

■ Phantom for CTDI Measurement
This is a three-part CTDI measurement phantom for QA/QC purposes.
It is compatible with any CT system and can be used to examine and image adult heads and torsos, as well as pediatric heads. It is made
of acrylic resin (PMMA).
A two-part model (adult head and torso) is also available.
| Size | Adult Torso Adult Head / Pediatric Torso Pediatric Head |
Diameter: 320 mm, Length: 150 mm Diameter: 160 mm, Length: 150 mm Diameter: 100 mm, Length: 150 mm |
| Puncture Size for Measurement |
Diameter: 13.1 mm (4 holes at the center and 90° positions around the circumference, plus 1 hole 10 mm from the edge, for a total of 5 holes) |
