For Existing X-ray Equipment
By using the dosimeter and display unit, you can easily perform dose monitoring even with existing x-ray equipment. Measurement data can also be transmitted to a computer via an RS232 connection from the display unit. Additionally the dosimeter is available in two sizes to accommodate different collimator sizes.

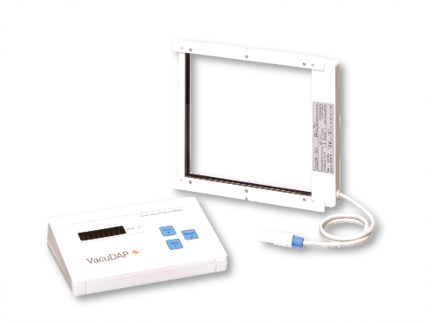

■ VacuDAP standard
This is the standard model, consisting of one measuring unit and one display unit. During irradiation, the area dose rate is displayed, and after irradiation, the area dose is displayed.

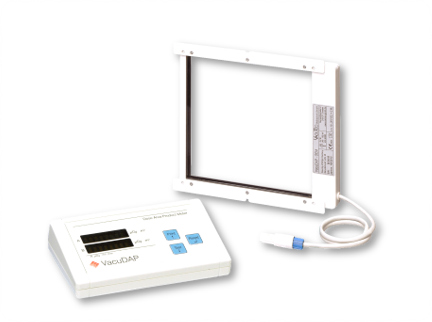

■ VacuDAP fluoro
This model includes 1 measuring unit and 1 display unit (2-line display). With two display panels, you can check the area dose and area dose rate simultaneously.

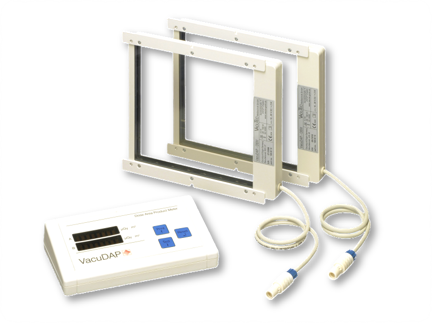

■ VacuDAP twin
This model includes 2 measuring unit and 1 display unit (2-line display). It allows you to display data from the two dosimeters separately on channels 1 and 2.

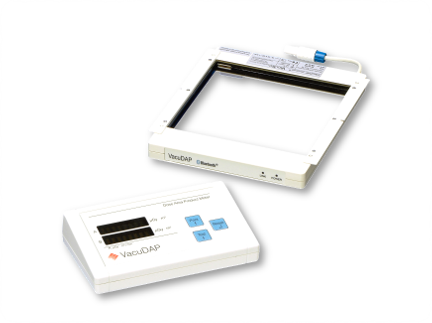

■ VacuDAP Bluetooth
This model includes 1 measuring unit and 1 display unit (2-line display). The detector and display unit connect wirelessly via Bluetooth, eliminating wiring issues.

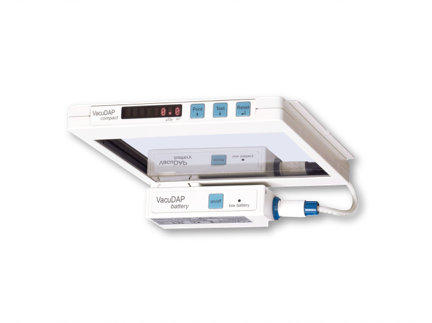

■ VacuDAP compact
This is an all-in-one model combining the measuring unit and display. It is ideal for mobile units and portable devices.

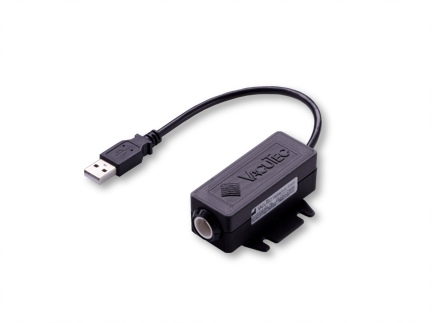

■ USB Converter
This converter allows you to connect the VacuDAP chamber directly to a PC via a standard USB interface and supply power to it.
| Model | VacuDAP standard |
VacuDAP fluoro |
VacuDAP twin |
VacuDAP Bluetooth |
VacuDAP compact |
| Application | For general radiography | For fluoroscopy units | For dual-tube systems | For cable-free systems | For mobile X-ray units |
| Features | Single-line display | 2-line display | Two-unit configuration | Bluetooth connection | Integrated meter and display |
| External connection | External connection is possible via the display unit. RS485 | External connection available via an additional display |
|||
| Power Supply | The meter is powered via the display. 110–240 V AC |
||||
| The display unit is powered by the power supply. |
|||||
| Measurement Data | Area dose, area dose rate, exposure time | ||||
| Product Number |
158(6) 00 15 943 00 01 943 00 40 950 00 57(8, 9) |
158(6) 00 15 943 00 04 943 00 40 950 00 57(8, 9) |
158(6) 00 15943 00 02 943 00 40 950 00 57(8, 9) |
158(6) 00 14 943 00 06 950 00 57(8, 9) *Chamber Power |
158(6) 00 05 *Chamber Power Option |
*Chamber power supply options:Power can be supplied from AC, DC, battery, or the collimator.
