For Medical Use
The “PAG” FPD protective holder reduces the risk of the FPD falling during transport, protects the FPD, and makes it more convenient to carry and use at the bedside, allowing you to use the FPD with peace of mind.
It also protects the FPD from impacts and liquids such as blood and chemicals. We offer a variety of models to suit different usage scenarios, such as imaging procedures.
■ PAG Light (with grid)
SLIM HANDLE PAG DRP ENCASEMENT
■ PAG Light (without grid)
SLIM HANDLE MOBILE DRP HOLDER

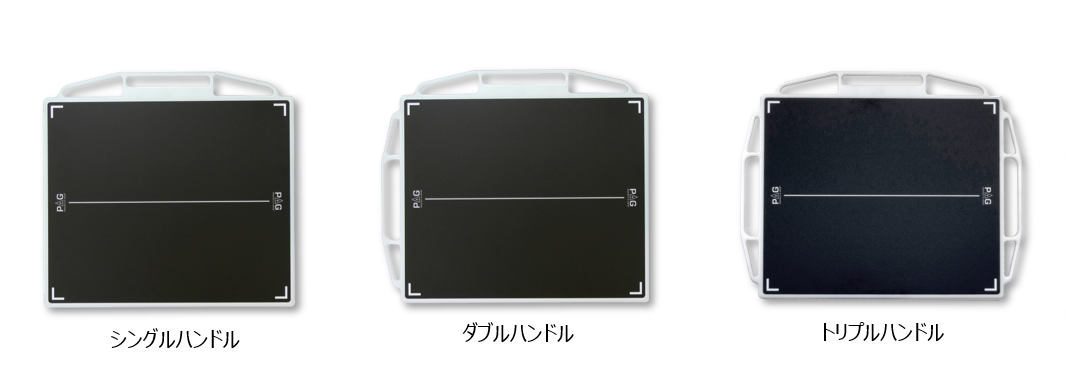

The PAG Light is a lightweight model that is even lighter than previous products, making it easier to handle even for female radiological technologist. Not only is it lightweight, but reducing the product’s thickness also minimizes the burden on patients and allows for rapid imaging. You can choose from single, double, or triple handle designs to suit your specific application.

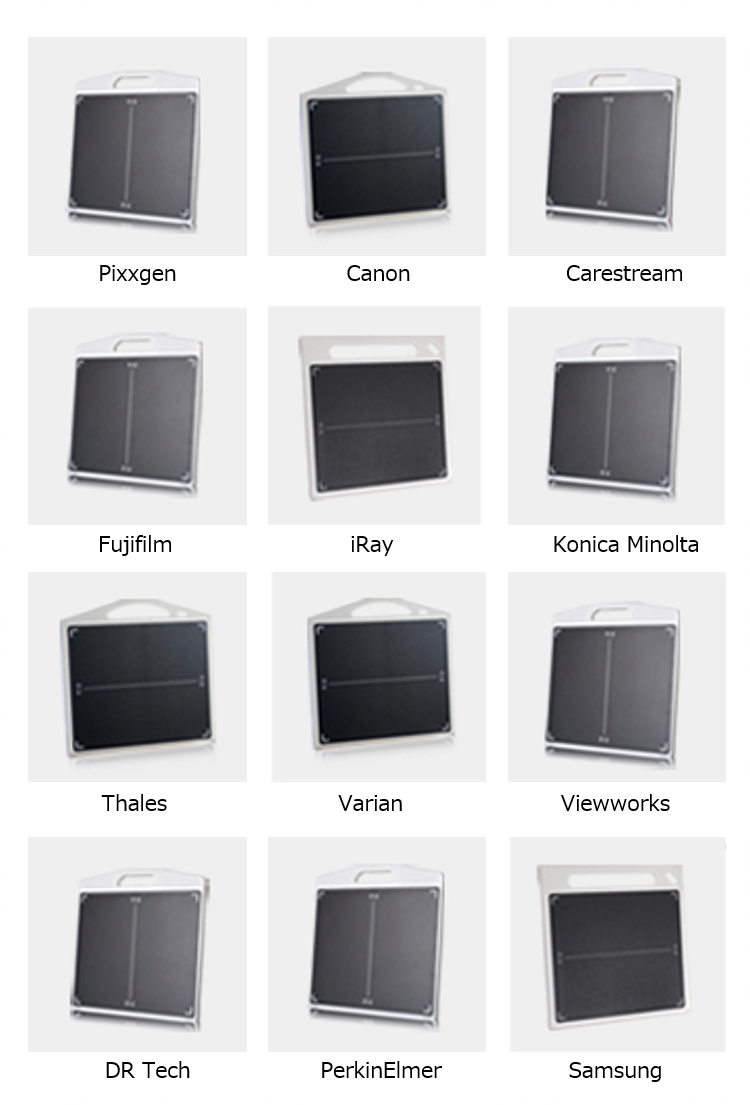

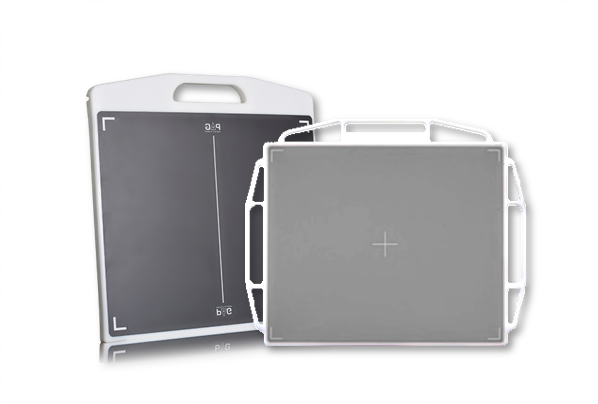

■ PAG (Standard Model / With Grid)
PAG DRP ENCASEMENT
This model features a grid attached to an FPD holder with handles. By integrating the grid and FPD, the need for manual alignment is eliminated, enabling rapid imaging.

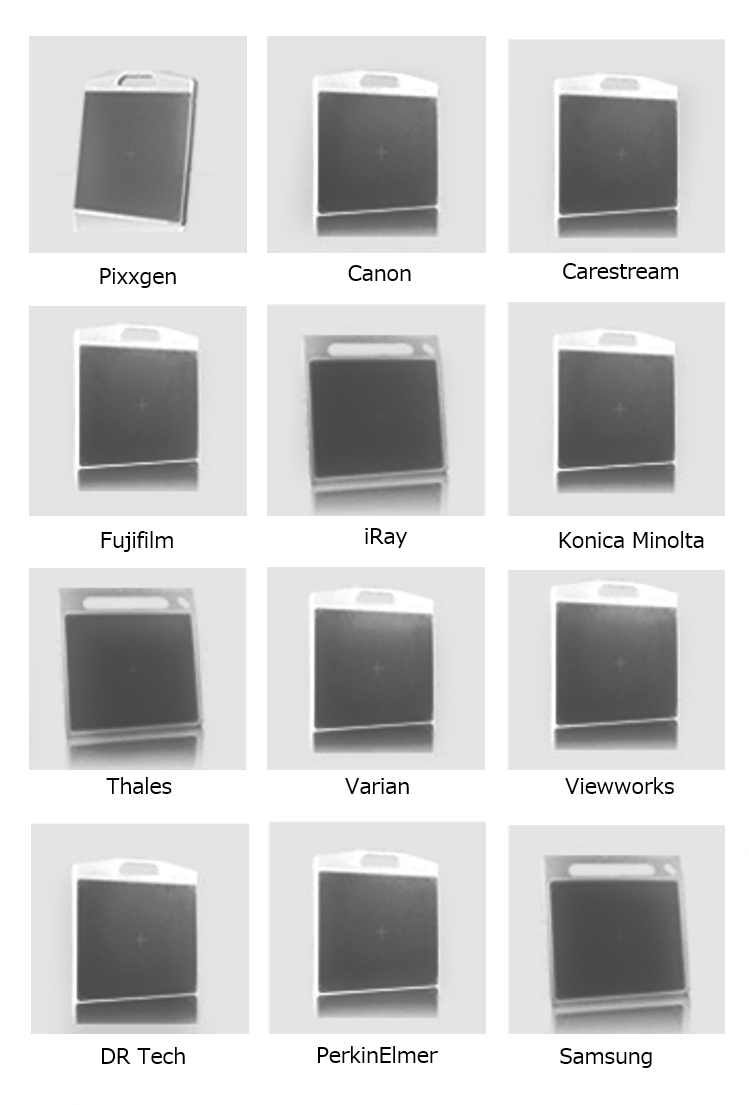

■ PAG (Standard Model / Without Grid)
MOBILE DRP HOLDER
This is the grid-less version of the FPD holder with handles. 14*17″ holder is lightweight at just 890g. It features a twin-lock mechanism to secure the FPD, preventing accidental drops.

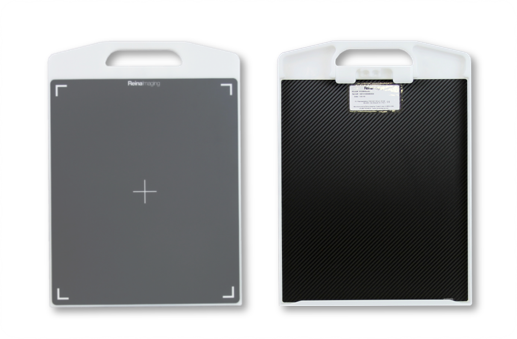

■ PAG Vertical (With / Without Grid)
MOBILE VERTICAL DRP HOLDER
This is the vertical version of the standard PAG model. It is suitable for vertical imaging, such as X-ray examinations performed while the patient is in a wheelchair.

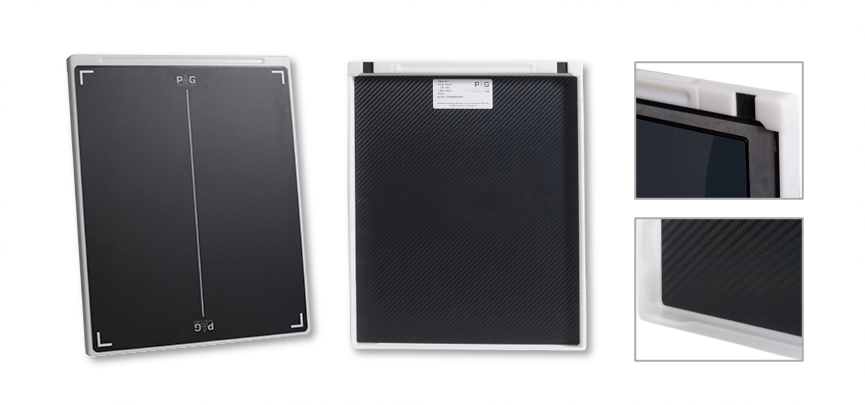

■ Compact PAG (With/Without Grid)
SNAP-ON PAG DRP ENCASEMENT
This handle-less FPD holder is the slimmest model among those developed for various imaging methods.
A recessed grip on the top makes it easy to hold, and it can be used with the same dimensions as the FPD itself.
It also features a slide-lock mechanism, allowing you to easily secure the FPD by simply sliding the top lock. You can choose between models with or without a grid.
■ Specifications
| FPD Size | Model Name | Size (mm) | Weight(kg) w/Grid |
Weight(kg) w/o grid | Compatible Models |
|---|---|---|---|---|---|
| 14 x 17″ Vertical |
PS1417 (with grid) PSNG1417 (without grid) |
397 x 485 x 25 | 1.8 | 0.8 | • AeroDR1417 •CALNEO C • CXDI •FDX3543RPW |
| 24 x 30 cm Vertical | PS2430 (with grid) PSNG2430 (without grid) |
344 x 295 x 23.8 | 1.1 | 0.5 | CALNEO C mini |
* The weight for the version with grid is based on a specification of 40l/cm, 6:1.

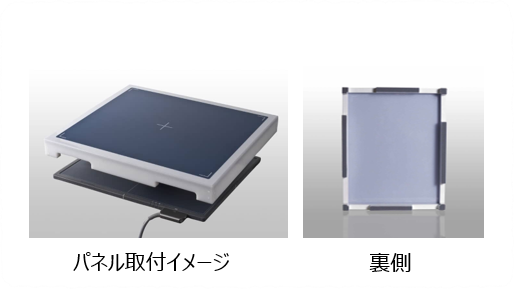

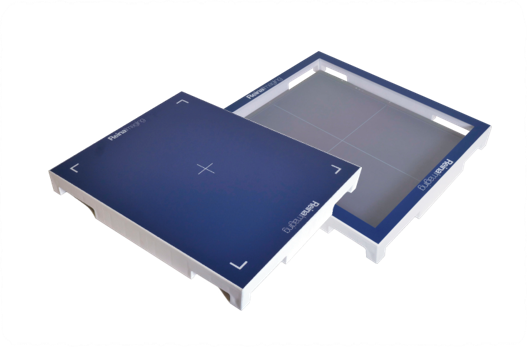

■ Weight Bearing PAG (Without Grid)
WEIGHT DISTRIBUTION CAP
With a load capacity of 340 kg, the holder can be stepped on and allowing weight-bearing foot X-ray imaging without placing stress on the FPD. The sides feature cutouts to prevent cables from getting in the way. Additionally, the bottom is made of rubber to prevent slipping, ensuring safe use. You can choose between a transparent or opaque top panel.
■ Specifications
| FPD Size | Model Name | Dimensions (mm) | Weight(kg) w/o grid |
Compatible |
|---|---|---|---|---|
| 17*17 | WDDR1717 | 511 x 511 x 57 | 4.6 | ･AeroDR1717 ･CALNEO ･CXDI ･FDX4343RPW |
| 17*17 Transparent |
WDDR1717-C | 502*502*51 | 4.6 | ･AeroDR ･CALNEO ･CXDI ･FDX4343RPW |
| 14*17 | WDDR | 508*428.6*55.5 | 3.3 | ･AeroDR ･CALNEO ･CXDI ･FDX3543RPW |
| 14*17 Clear |
WDDR-C | 508*428.6*55.5 | 3.3 | ･AeroDR ･CALNEO ･CXDI ･FDX3543RPW |
■ Specifications
| Size | Model Name | Size (mm) | Weight(kg) w/ Grid |
Weight(kg) w/o grid | Compatible Models |
|---|---|---|---|---|---|
| ● PAG Light (with/without grid) | |||||
| 14 x 17” 1-handle |
P1H1417 (with grid) P1HNG1417 (without grid) |
474.6 x 436.5 x 22.2 | 2.1 | 0.9 | ･AeroDR ･CALNEO C ･CXDI ･FDX3543RPW |
| 14 x 17” 2-handle |
PH1417 (with grid) PHNG1417 (without grid) |
510.4 x 443.7 x 23.5 | 2.1 | 0.9 | |
| 14 x 17″ 3-handle |
P3H14 (with grid) P3HNG1417 (without grid) |
546 x 443 x 25.4 | 2.2 | 1.0 | |
| ● PAG (Standard Model / With Grid / Without Grid) | |||||
| 17 x 17” | PDR17 (with grid) PDRNG17 (without grid) |
476 x 545 x 25 | 2.6 | 1.0 |
• AeroDR |
| 17 x 17” | PDRD217 (with grid) PDRNGD217 (without grid) |
476 x 545 x 25 | 2.6 | 1.0 | ･CALNEO Flow/Smart |
| 14 x 17″ | PDR (with grid) PDRNG (without grid) |
478 x 470 x 25 | 2.2 | 0.9 | ･AeroDR1417 ･CALNEO C ･CXDI ･FDX3543RPW |
| 14 x 17″ | PDRD2 (with grid) PDRNGD2 (without grid) |
472 x 466 x 18 | 2.2 | 0.9 |
･CALNEO |
| 14 x 17″ Vertical |
PVDR (with grid) PVDRNG (without grid) |
545*391*24 | 2.2 | 0.9 | ･AeroDR ･CALNEO ･CXDI ･FDX3543RPW |
| 14 x 17″ Vertical |
PVDRD2 (with grid) PVDRNGD2 (without grid) |
545*391*18 | 2.2 | 0.9 | ･CALNEO Flow/Smart |
| 10 x 12″ | PDR10 (with grid) PDRNG10 (without grid) |
349 x 366 x 25 | 1.2 | 0.7 | ･AeroDR ･FDX2530RPW |
| 24 x 30 cm | PDR24 (with grid) PDRNG24 (without grid) |
344 x 344 x 25 | 1.1 | 0.6 | ･CALNEO C mini |
| 11 x 14″ | PDR80C (with grid) PDRNG80C (without grid) |
457 x 320 x 23 | 1.2 | 0.7 | ･CXDI |
| 11 x 14” Vertical |
PVDR80C (with grid) PVDRNG80C (without grid) |
381*396*23 | 1.3 | 0.7 | ･CXDI |
* The weight for the grid-equipped model is based on a specification of 40l/cm, 6:1.
* Models not listed here may also be available; please contact us for details.
