Aluminum Grid

Using a grid effectively removes unwanted stray lines and improves image contrast.

■ Features

• The JPI grid is manufactured using high-purity lead and is highly effective at eliminating scattered radiation.
• By using uniform aluminum and lead foils and polishing them with precision, we achieve high-quality, uniform images.
• You can eliminate moiré patterns by using a grid optimized for high density (such as 120 lines per centimeter) that matches the image sensor.
• We can provide simulation data based on physical properties that closely match actual measurements, as well as recommendations for optimal grid specifications.
• By developing and operating digital image analysis software in-house, we are able to provide a more stable and high-quality grid.
• In addition to 17×17-inch grids, we can also produce custom-sized grids, including medium and long-length sizes using Mega Grids.
• Using the carbon cover improves durability and ensures consistent X-ray transmission.

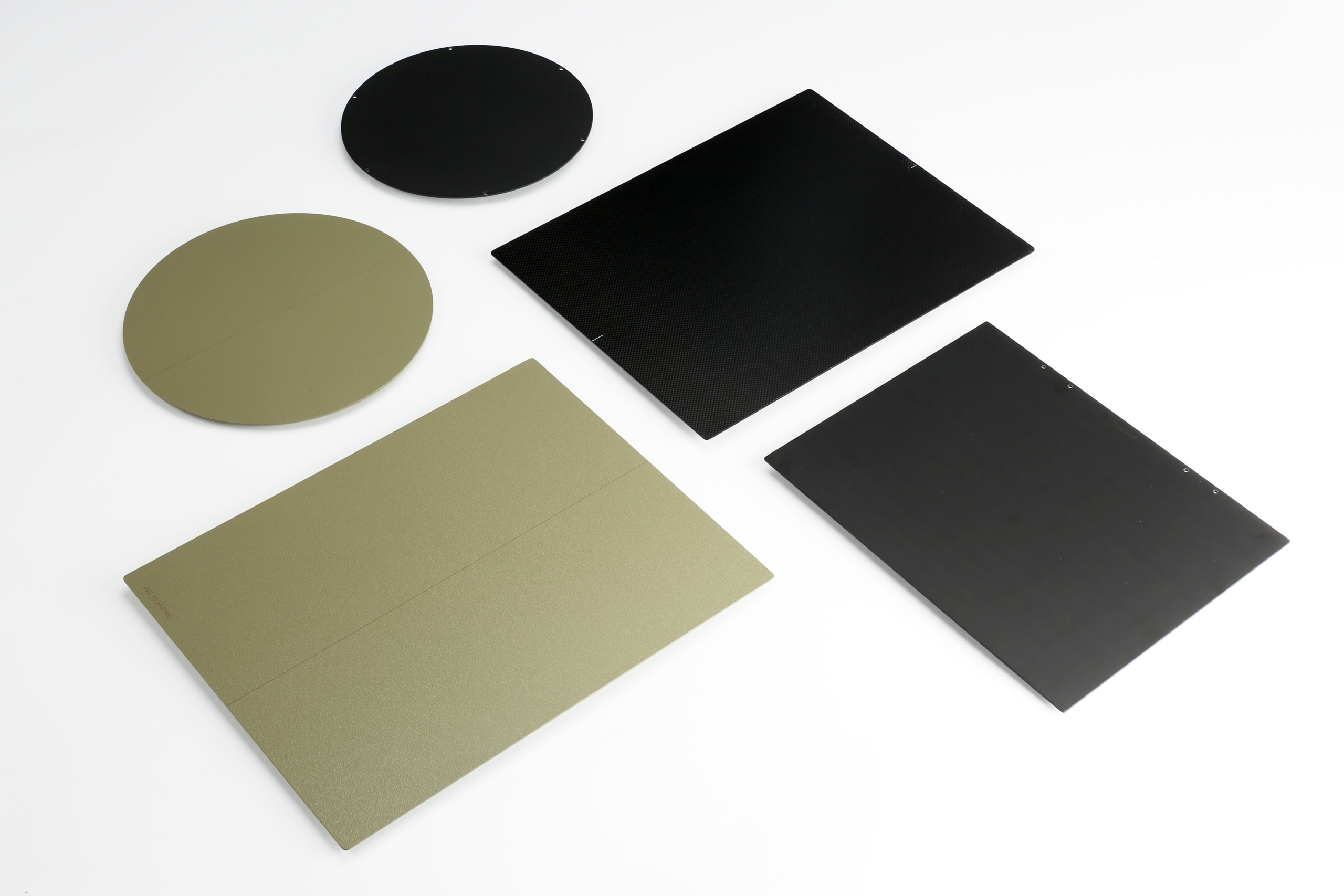

• In addition to standard square grids, we can also manufacture custom shapes to meet your specific requirements.

■ JPI Grid Specifications

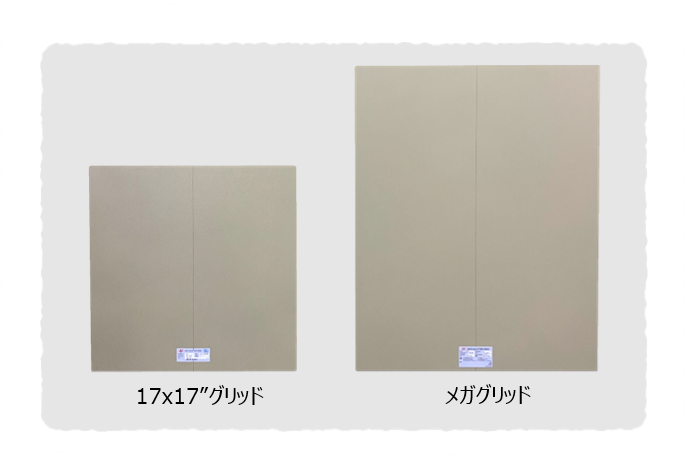

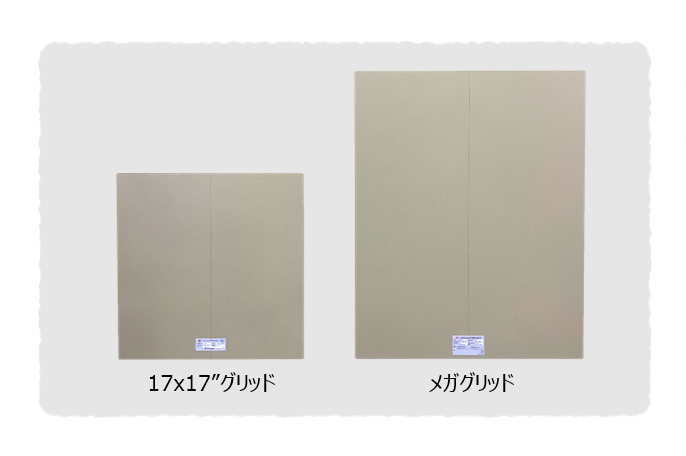

■Mega Grid

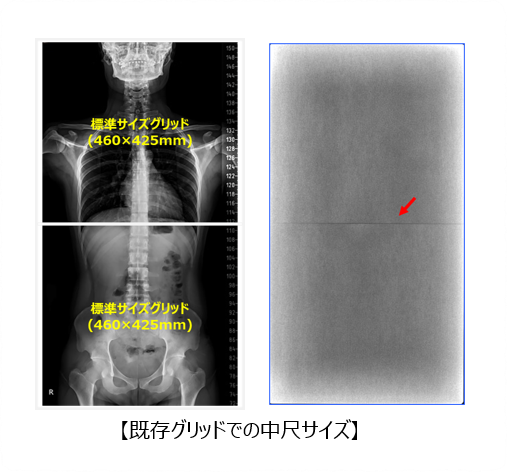

Traditionally, long and medium-sized grids were manufactured by joining two or three panels together.

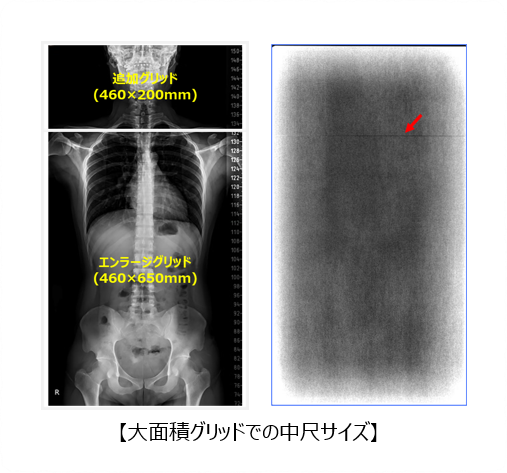

As a result, the joints were located near the center of the image, which posed a problem because they interfered with the central area where the primary lesion was visible.

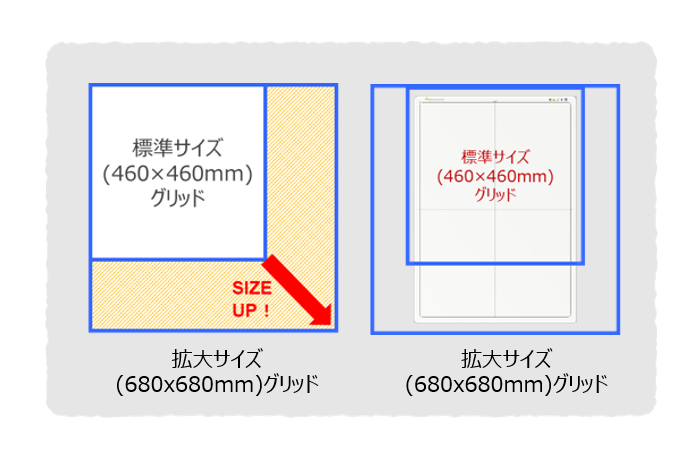

We have developed a technology that expands the maximum manufacturable grid size to 680 × 680 mm, and by positioning the joints at any desired location, we are able to produce grids that do not interfere with the center of the image.

■ Aluminum Grid Specifications

*Custom specifications are also available upon request.
*Please specify dimensions in millimeters for 17×17″ products and medium- to long-length products.
